Taiwan Semiconductor CorporationTaiwan, China

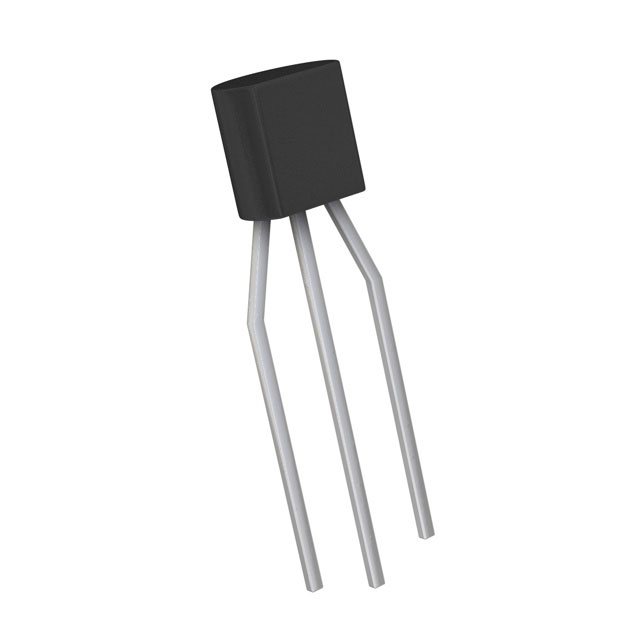

TRANS PNP 500V 0.15A TO92
All alternatives
View full reportTechnical parameters
Key specs
TypePNP
Collector-emitter voltage500 V
Collector current150 mAMax
DC current gain1501mA
Power1 WMax
| Power | |
|---|---|
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Current - Collector (Ic) (Max) | 150 mA |
| Power - Max | 1 W |
| Voltage - Collector Emitter Breakdown (Max) | 500 V |
| AC and DC characteristics | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 150 @ 1mA, 10V |
| Frequency - Transition | 50MHz |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | 150°C (TJ) |
| Package | Tape & Box (TB) |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92 |
| Other | |
| Mfr | Taiwan Semiconductor Corporation |
| Product Status | Obsolete |
| Series | - |
| Transistor Type | PNP |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 10mA, 50mA |
