Silicon LabsUnited States

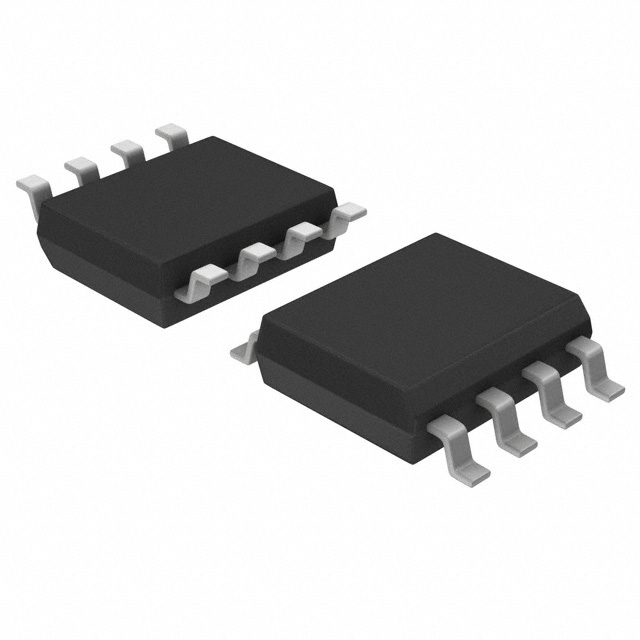

IC ADC 12BIT SAR 8SOIC
All alternatives
View full reportTechnical parameters
Key specs
Resolution12 bit
Sampling rate125 kSPSMax
Inputs1 ~ 2
InterfaceSPI
Supply voltage2.7 ~ 5.25 V
| Power | |
|---|---|
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Package | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Architecture | SAR |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Features | - |
| Input Type | Single Ended |
| Mfr | Silicon Labs |
| Number of A/D Converters | 1 |
| Number of Bits | 12 |
| Number of Inputs | 1, 2 |
| Product Status | Obsolete |
| Ratio - S/H:ADC | 1:1 |
| Reference Type | External, Internal |
| Sampling Rate (Per Second) | 125k |
| Series | - |
