APEM Inc.France

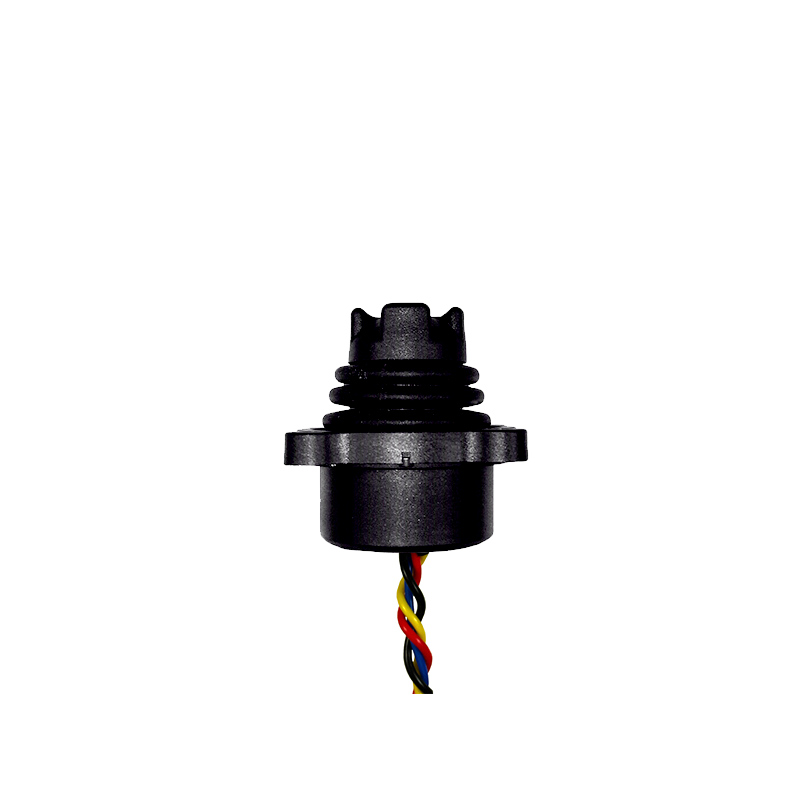

TS1N1S09A Joystick: Ergonomic design, reliable control device for enhanced comfort and usability. Ideal for various applications.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Return to Center Voltage Tolerance | ±200mV initial |
| Supply current | 11mA max |
| Supply Voltage Range | 5.00V±0.01V |
| Transient overvoltage Max | 16V |
| AC and DC characteristics | |
| Output Impedance | 2Ω |
| Environment and package | |
| Mounting | None |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Other | |
| EMC Emissions Level | EN61000-6-3:2001 |
| EMC Immunity Level | EN61000-4-3 |
| ESD | EN61000-4-2 |
| General Specifications | 1 or 2 axis |
| Ratiometric output options | see options |
| Reverse Polarity Max | -10V |
| Sealing | IP67 |
| Start-up time | 15ms max |
| Technology | Hall effect sensors, single or dual |
