PanasonicJapan

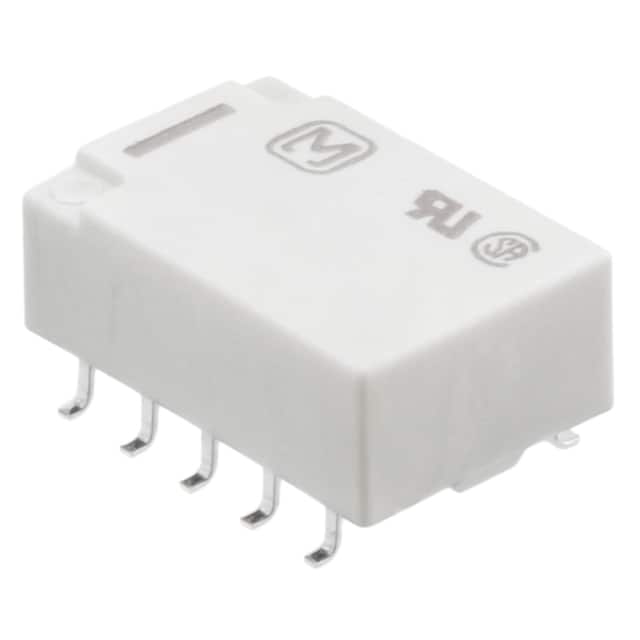

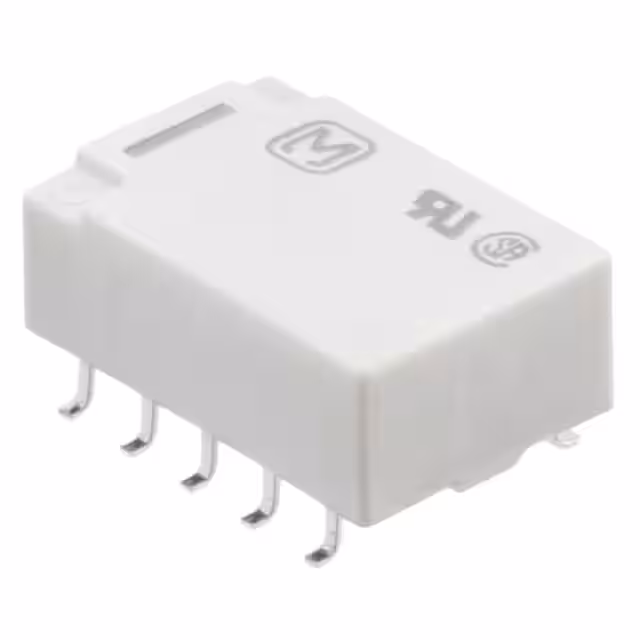

RELAY TELECOM DPDT 2A 9VDC
All alternatives
View full reportTechnical parameters
Key specs
Coil voltage9 V
Contact formDPDT
Contact current2 AMax
Switching voltage220 VMax
| Power | |
|---|---|
| Coil Current | 15.5 mA |
| Coil Voltage | 9VDC |
| Contact Rating (Current) | 2 A |
| Must Operate Voltage | 6.75 VDC |
| Must Release Voltage | 0.9 VDC |
| Switching Voltage | 125VAC, 220VDC - Max |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tube |
| Other | |
| Base Product Number | TQ2SS |
| Coil Insulation | - |
| Coil Resistance | 579 Ohms |
| Coil Type | Non Latching |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Features | - |
| Mfr | Panasonic Electric Works |
| Operate Time | 4 ms |
| Product Status | Active |
| Relay Type | Telecom |
| Release Time | 4 ms |
| Seal Rating | - |
| Series | TQ-SMD |
| Termination Style | Gull Wing |
