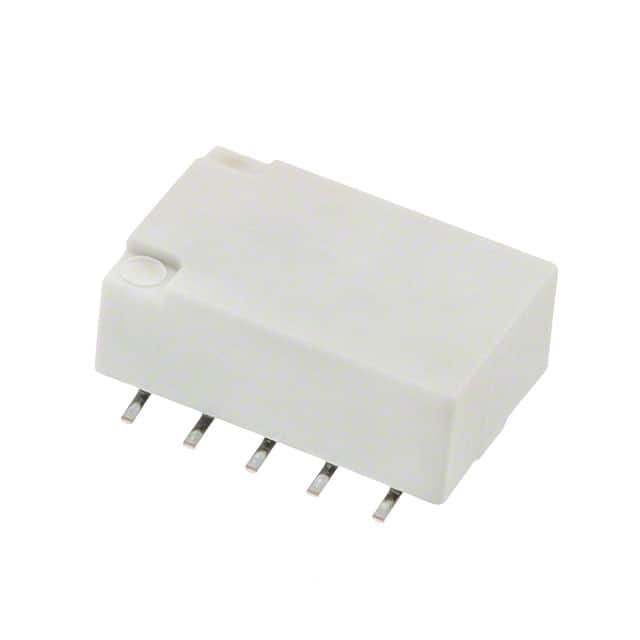

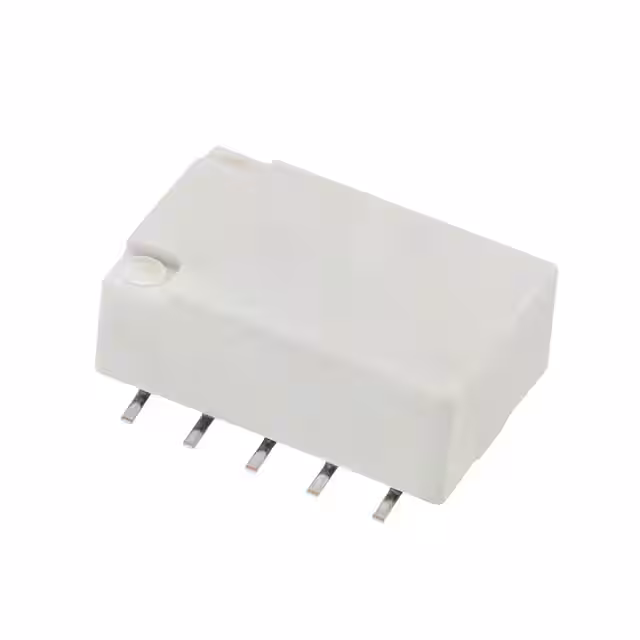

TQ2SA-L2-4.5V-Z
PanasonicJapan

TQ2SA-L2-4.5V-Z

ActiveSignal Relays, Up to 2 Amps

RELAY TELECOM DPDT 2A 4.5VDC

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Coil voltage4.5 V
Contact formDPDT
Contact current2 AMax
Switching voltage220 VMax
Power
Coil Current31 mA
Coil Voltage4.5VDC
Contact Rating (Current)2 A
Must Operate Voltage3.38 VDC
Must Release Voltage-
Switching Voltage125VAC, 220VDC - Max
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C~85°C
PackageTape & Reel (TR); Cut Tape (CT)
Other
Base Product NumberTQ2SA
Coil Insulation-
Coil Resistance145 Ohms
Coil TypeLatching, Dual Coil
Contact FormDPDT (2 Form C)
Contact MaterialSilver Nickel (AgNi), Gold (Au)
Features-
MfrPanasonic Electric Works
Operate Time4 ms
Product StatusActive
Relay TypeTelecom
Release Time4 ms
Seal Rating-
SeriesTQ-SMD
Termination StyleGull Wing
