Littelfuse Inc.United States

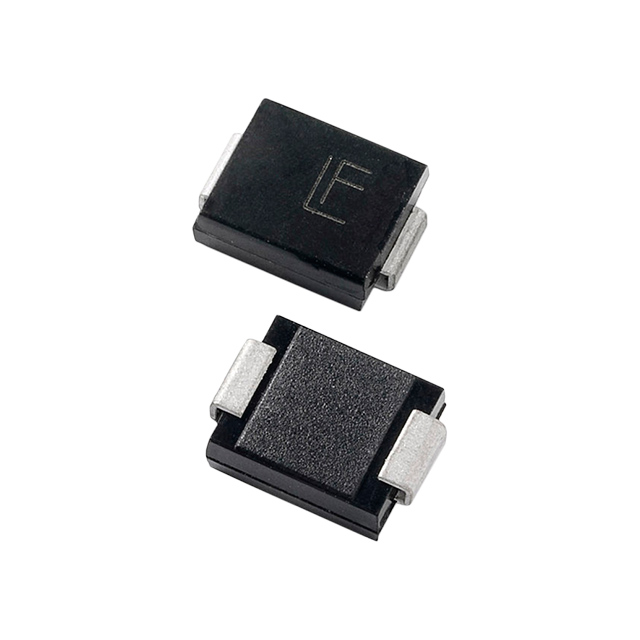

TVS DIODE 10.2VWM 16.7VC DO214AB
All alternatives
View full reportTechnical parameters
Key specs
Reverse standoff voltage10.2 V
Breakdown voltage11.4 V
Clamping voltage16.7 VMax
Peak pulse power1.5 kW
PolarityUnidirectional
| Power | |
|---|---|
| Current - Peak Pulse (10/1000µs) | 91A |
| Power Line Protection | No |
| Power - Peak Pulse | 1500W (1.5kW) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 11.4V |
| Voltage - Clamping (Max) @ Ipp | 16.7V |
| Voltage - Reverse Standoff (Typ) | 10.2V |
| AC and DC characteristics | |
| Capacitance @ Frequency | - |
| Environment and package | |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Package / Case | DO-214AB, SMC |
| Qualification | AEC-Q101 |
| Supplier Device Package | DO-214AB (SMCJ) |
| Other | |
| Applications | - |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | TPSMC |
| Type | Zener |
