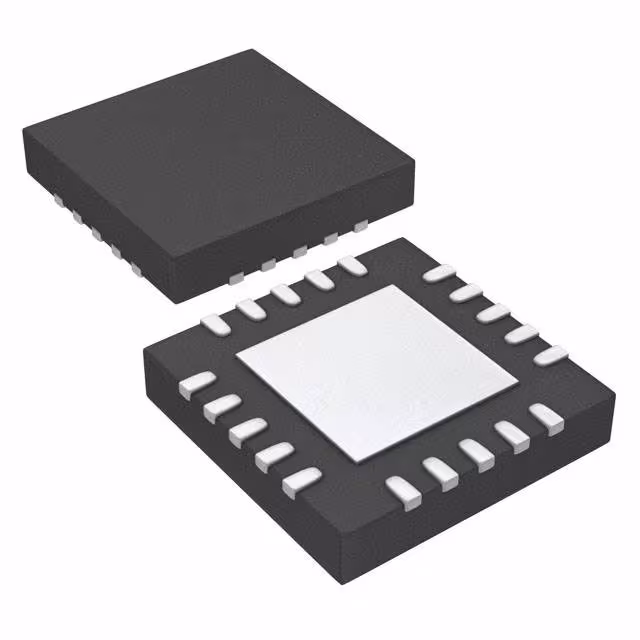

IC REG LIN POS ADJ 3A 20VQFN
All alternatives
View full reportTechnical parameters
Key specs
Output voltage900 mV ~ 5 V
Output current3 AMax
Input voltage≤ 6.5 V
Dropout voltage700 mVMax · 3A
Quiescent current4 mATyp
| Power | |
|---|---|
| Current - Output | 3A |
| Current - Quiescent (Iq) | 4 mA |
| Voltage Dropout (Max) | 0.7V @ 3A |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Max) | 5V |
| Voltage - Output (Min/Fixed) | 0.9V |
| AC and DC characteristics | |
| PSRR | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 20-VQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (5x5) |
| Other | |
| Base Product Number | TPS7A7300 |
| Control Features | Enable, Power Good, Soft Start |
| Mfr | Texas Instruments |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Series | - |
