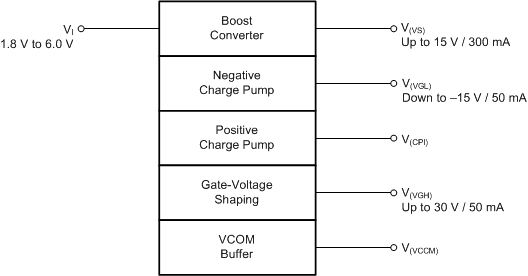

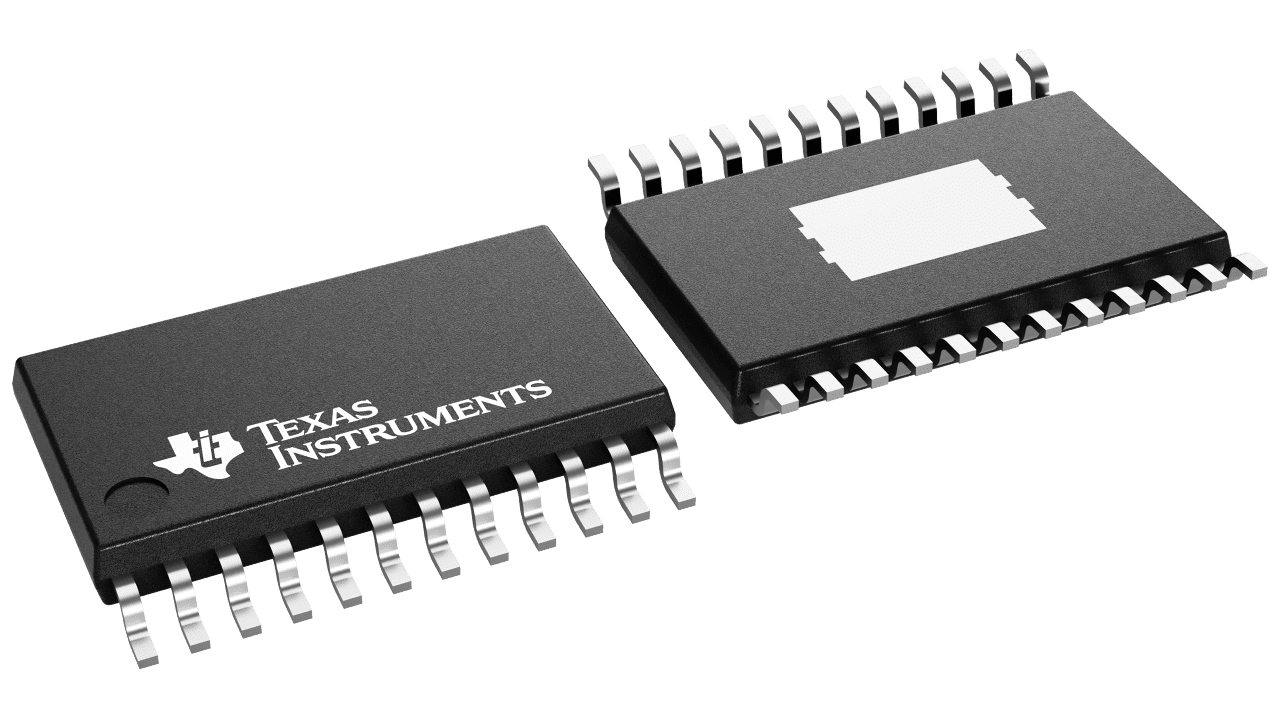

The TPS65150-Q1 is an integrated power-supply for automotive LCD applications. The device integrates a boost converter for the source voltage and two regulated adjustable charge pump drivers for the gate voltages. For reduced external cost, improved picture quality and reduced image sticking, the device includes a VCOM buffer and a gate-voltage shaping function. The device is designed to operate from a supply voltage of 1.8 V to 6 V making it ideal for automotive LCD applications using a fixed 3.3 V or 5 V input-voltage rail. Adjustable power-on sequencing for VGL and VGH allow the device to be optimized for a variety of displays. For protection from system malfunction, the TPS65150-Q1 integrates an adjustable shutdown latch feature. The device monitors the outputs (V (VS) , V (VGL) , V (VGH) ); and, as soon as one of the outputs falls below its power-good threshold for longer than the adjustable fault delay time, the device enters shutdown.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Source driver voltage (max) (V) | 15 |
| Source driver voltage (min) (V) | 5 |
| Environment and package | |
| Operating temperature range (°C) | -40 to 125 |
| Other | |
| Applications | 7 inches or less, 7 to 13 inches |
| Display type | Automotive, LCD unipolar |
| Features | Adjustable sequencing, GPM or GVS, VCOM or op amp |
| IC integration | LCD bias, VCOM |
| Level shifter/scan driver (Ch) | 0 |
| Rating | Automotive |
| Topology | Boost |
| Vin (max) (V) | 6 |
| Vin (min) (V) | 1.8 |
| V_NEG (max) (V) | -2 |
| V_POS (max) (V) | 30 |
