Acme Electric/Amveco/ActownUnited States

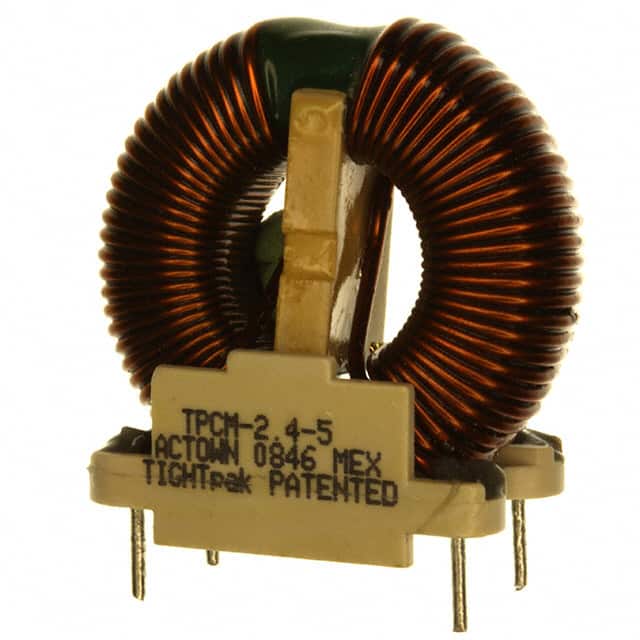

CMC 2.41MH 5A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating5 AMax
DC resistance36 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 5A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| AC and DC characteristics | |
| Inductance @ Frequency | 2.41 mH @ 10 kHz |
| Environment and package | |
| Height (Max) | 1.300" (33.02mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | Vertical, 4 PC Pin |
| Size / Dimension | 1.200" L x 0.700" W (30.48mm x 17.78mm) |
| Other | |
| Approval Agency | - |
| DC Resistance (DCR) (Max) | 36mOhm |
| Features | - |
| Filter Type | - |
| Mfr | Acme Electric/Amveco/Actown |
| Number of Lines | 2 |
| Product Status | Obsolete |
| Ratings | - |
| Series | TIGHTpak™ |
