Tycon Systems Inc.United States

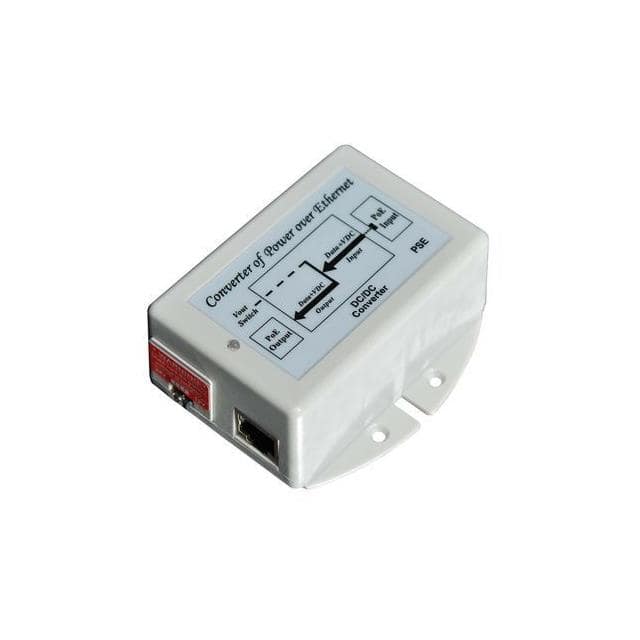

48V 802.3AF/AT INPUT, GIGABIT, S
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Output | 1 A |
| Power (Watts) - Per Port | 24W |
| Voltage - Input | 36 ~ 60V |
| Voltage - Output | 18V, 24V |
| Environment and package | |
| Mounting Type | Desktop |
| Operating Temperature | -30°C~60°C |
| Package | Box |
| Size / Dimension | 3.40" L x 3.00" W x 1.40" H (86.4mm x 76.2mm x 35.6mm) |
| Other | |
| Approval Agency | FCC, TUV |
| Base Product Number | TP-POE |
| Compliance | IEEE802.3af, IEEE802.3at |
| Data Rate | 10/100/1000 Mbps |
| Efficiency | - |
| Features | OCP, OVP, SCP |
| Input Connector | RJ45 (Data, Power) |
| Mfr | Tycon Systems Inc. |
| Note | - |
| Number of Ports | 1 |
| Output Connector | RJ45 (Data, Power) |
| Product Status | Active |
| Series | TP-POE |
| Type | Passive Injector |
