Century Spring CorpUnited States

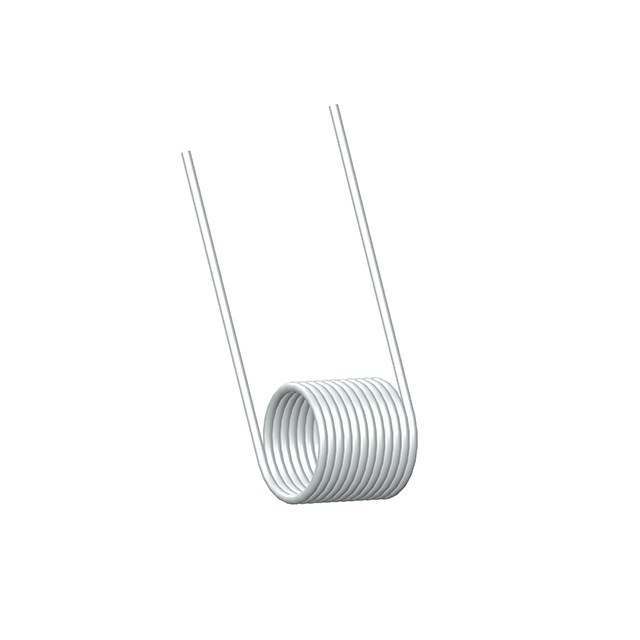

TOR O=1.465, W=.115
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Deflection Angle | 297° |
| Diameter - Outside | 1.470" (37.34mm) |
| Finish | None |
| Leg Length | 4.000" (101.60mm) |
| Mandrel Diameter | 0.980" (24.89mm) |
| Material | Stainless Steel |
| Mfr | Century Spring Corp |
| Number of Coils | 11.5 |
| Product Status | Active |
| Series | - |
| Wind Direction | Left |
| Wire Diameter | 0.115" (2.92mm) |
Documents
No documents are linked to this part yet.
