Century Spring CorpUnited States

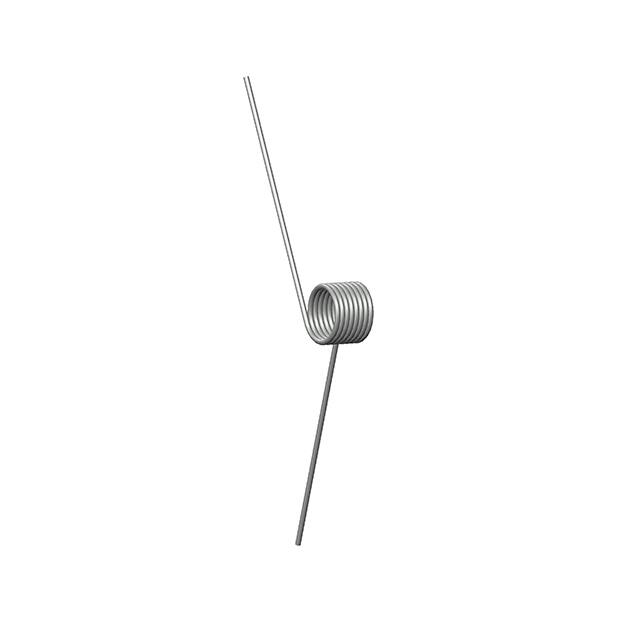

TOR O=.465, W=.042
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Deflection Angle | 222° |
| Diameter - Outside | 0.470" (11.94mm) |
| Finish | None |
| Leg Length | 2.000" (50.80mm) |
| Mandrel Diameter | 0.300" (7.62mm) |
| Material | Music Wire |
| Mfr | Century Spring Corp |
| Number of Coils | 7.875 |
| Product Status | Active |
| Series | - |
| Wind Direction | Left |
| Wire Diameter | 0.042" (1.07mm) |
Documents
No documents are linked to this part yet.
