TO-5030LCS
Century Spring CorpUnited States

TO-5030LCS

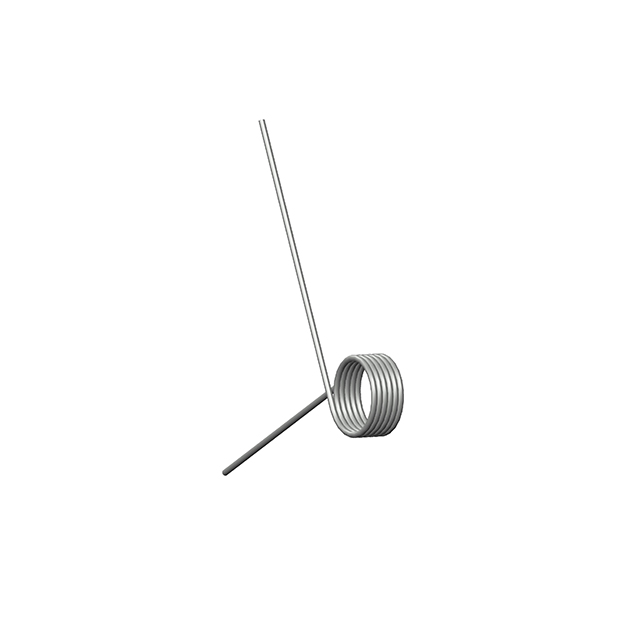

Torsion Springs

TOR O=.200, W=.015

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Deflection Angle215°
Diameter - Outside0.200" (5.08mm)
FinishNone
Leg Length0.750" (19.05mm)
Mandrel Diameter0.130" (3.30mm)
ManufacturerCentury Spring Corp
MaterialMusic Wire
Number of Coils5.75
PackagingBox
Part StatusActive
Series-
Wind DirectionLeft
Wire Diameter0.015" (0.38mm)

Documents

No documents are linked to this part yet.
