Century Spring CorpUnited States

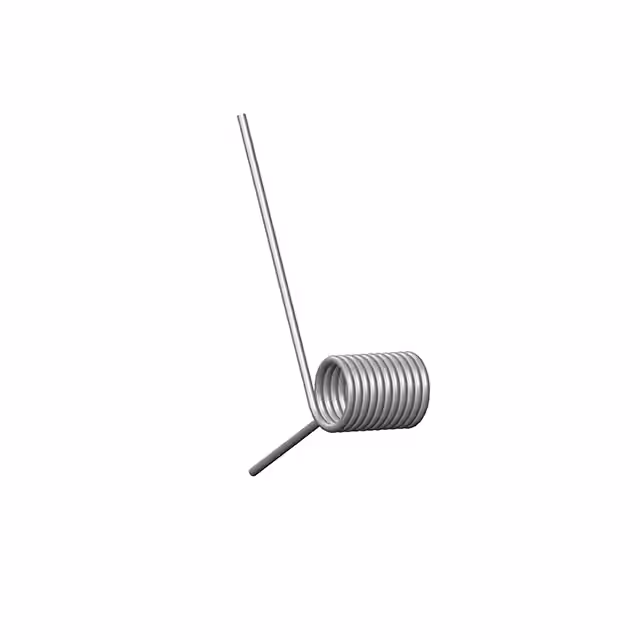

TOR O=.185, W=.021
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Package | Box |
| Other | |
| Deflection Angle | 232° |
| Diameter - Outside | 0.190" (4.83mm) |
| Finish | None |
| Leg Length | 0.750" (19.05mm) |
| Mandrel Diameter | 0.110" (2.79mm) |
| Material | Music Wire |
| Mfr | Century Spring Corp |
| Number of Coils | 10.75 |
| Product Status | Active |
| Series | - |
| Wind Direction | Left |
| Wire Diameter | 0.021" (0.53mm) |
Documents
No documents are linked to this part yet.
