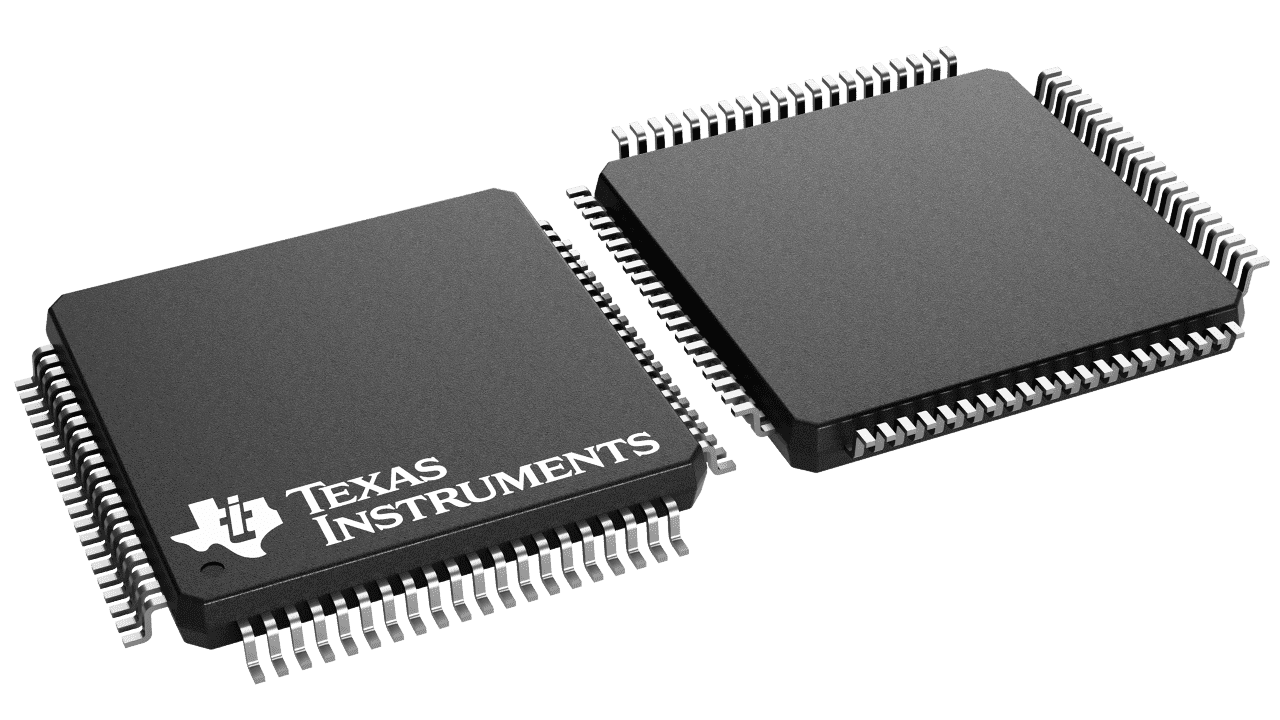

The F28035 Piccolo™ family of microcontrollers provides the power of the C28x core and Control Law Accelerator (CLA) coupled with highly integrated control peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, and also provides a high level of analog integration. An internal voltage regulator allows for single-rail operation. Enhancements have been made to the HRPWM to allow for dual-edge control (frequency modulation). Analog comparators with internal 10-bit references have been added and can be routed directly to control the PWM outputs. The ADC converts from 0 to 3.3-V fixed full-scale range and supports ratio-metric V REFHI /V REFLO references. The ADC interface has been optimized for low overhead and latency.
All alternatives
View full reportTechnical parameters
Key specs
| Power | |
|---|---|
| Number of ADC channels | 13, 14, 16 |
| AC and DC characteristics | |
| Frequency (MHz) | 60 |
| Environment and package | |
| Operating temperature range (°C) | -55 to 125 |
| Other | |
| ADC type | 12-bit |
| CAN (#) | 1 |
| Communication interface | CAN, I2C, SPI, UART |
| CPU | 1 C28, 1 CLA |
| Direct memory access (Ch) | 0 |
| Edge AI enabled | Yes |
| Features | 32-bit CPU timers, Single zone code security, Watchdog timer |
| Flash memory (kByte) | 128 |
| Hardware accelerators | Control law accelerator |
| Nonvolatile memory (kByte) | 128 |
| Number of GPIOs | 26, 33, 45 |
| Operating system | BareMetal (No OS), FreeRTOS, SafeRTOS |
| PWM (Ch) | 8, 12, 14 |
| QEP | 1 |
| RAM (kByte) | 20 |
| Rating | HiRel Enhanced Product |
| Security | Secure storage |
| SPI | 1, 2 |
| Total processing (MIPS) | 120 |
| UART | 1 |
| USB | No |
