Texas InstrumentsUnited States

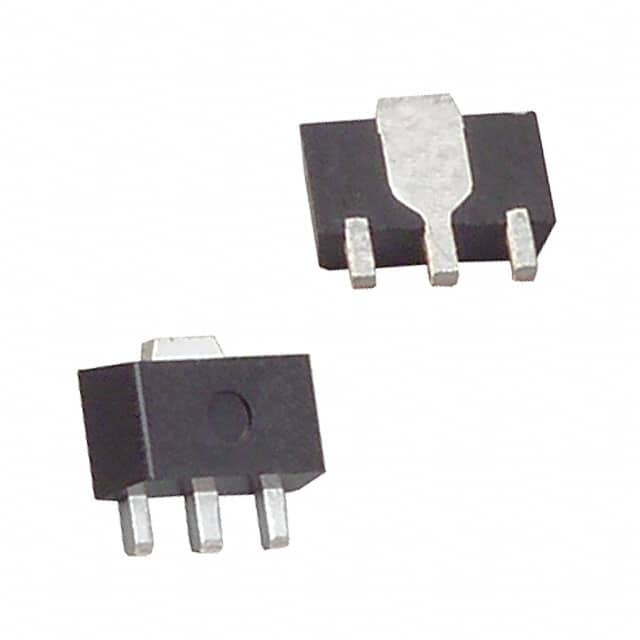

IC VREF SHUNT ADJ 1% SOT89-3
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Cathode | 700 µA |
| Current - Output | 100 mA |
| Current - Supply | - |
| Voltage - Input | - |
| Voltage - Output (Max) | 36 V |
| Voltage - Output (Min/Fixed) | 2.495V |
| AC and DC characteristics | |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
| Temperature Coefficient | - |
| Other | |
| Base Product Number | TL431 |
| Mfr | Texas Instruments |
| Output Type | Adjustable |
| Product Status | Active |
| Reference Type | Shunt |
| Series | - |
| Tolerance | ±1% |
Documents
No documents are linked to this part yet.
