TL-5134/P
Tadiran BatteriesIsrael

TL-5134/P

ActiveBatteries Non-Rechargeable (Primary)

BATTERY LITHIUM 3.6V 1/10 D

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Voltage - Rated3.6 V
Environment and package
Battery Cell Size1/10D
PackageBulk

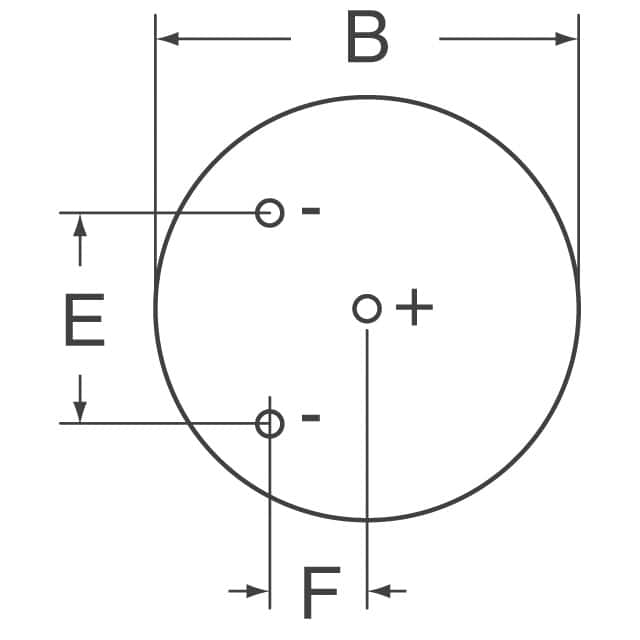

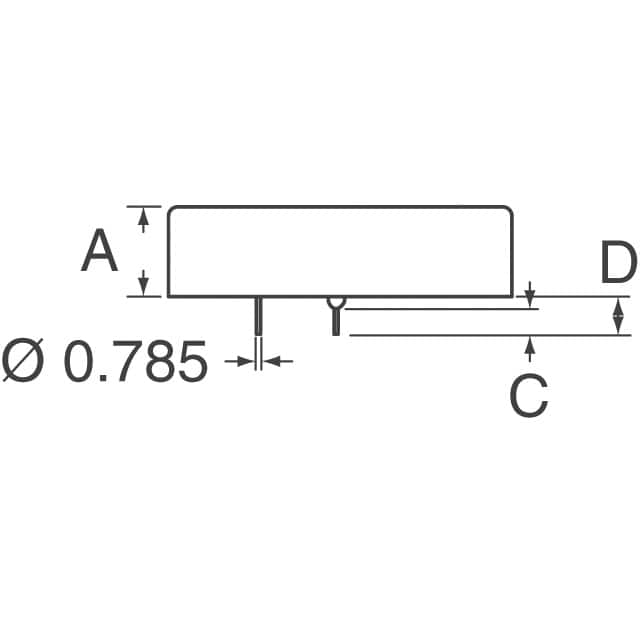

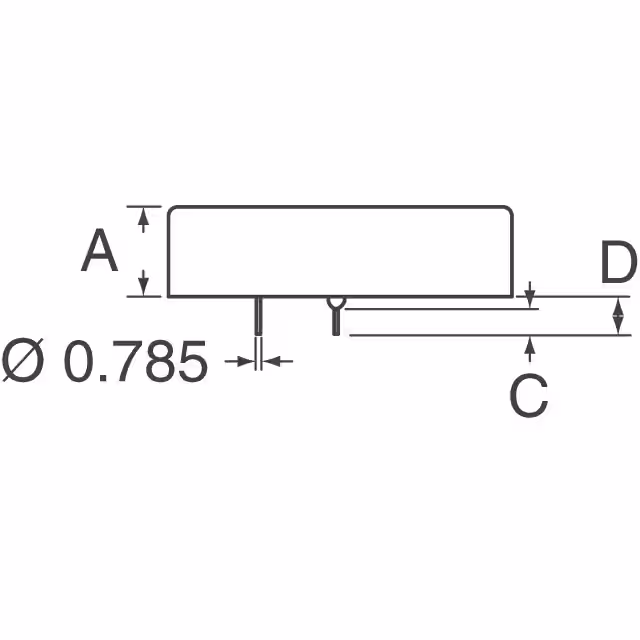

Size / Dimension1.30" Dia x 0.28" H (32.9mm x 7.2mm)
Storage/Refrigeration Temperature86°F(30°C)orBelow
Other
Battery ChemistryLithium Thionyl Chloride
Capacity1Ah
Discharge Rate500µA
MfrTadiran Batteries
Product StatusActive
SeriesTL5134
Shelf Life120 Months
Shelf Life StartDate of Manufacture
Shipping InfoDue to restrictions, only ground shipment is allowed.
Termination StylePC Pin
Weight16.8 g

Documents

No documents are linked to this part yet.
