Technical parameters

Key specs

ChannelN-channel
Drain-source voltage650 V
Continuous drain current24 A
On-resistance110 mΩMax · 12A
Gate threshold voltage4 VMax · 1.02mA
Power
Current - Continuous Drain (Id) @ 25°C24A (Ta)
Drain to Source Voltage (Vdss)650 V
Drive Voltage (Max Rds On, Min Rds On)10V
Power Dissipation (Max)45W (Tc)
Environment and package
Mounting TypeThrough Hole
Operating Temperature150°C
PackageTube

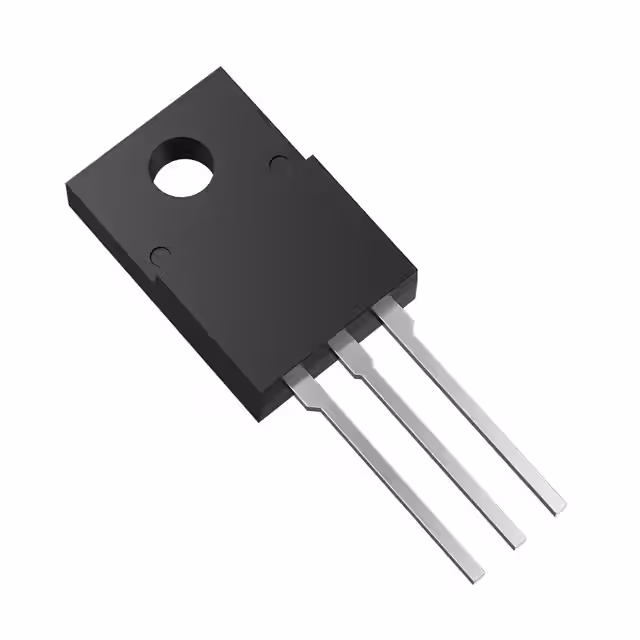

Package / CaseTO-220-3 Full Pack
Supplier Device PackageTO-220SIS
Other
Base Product NumberTK110A65
FET Feature-
FET TypeN-Channel
Gate Charge (Qg) (Max) @ Vgs40 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds2250 pF @ 300 V
MfrToshiba Semiconductor and Storage
Product StatusActive
Rds On (Max) @ Id, Vgs110mOhm @ 12A, 10V
SeriesDTMOSVI
TechnologyMOSFET (Metal Oxide)
Vgs (Max)±30V
Vgs(th) (Max) @ Id4V @ 1.02mA
