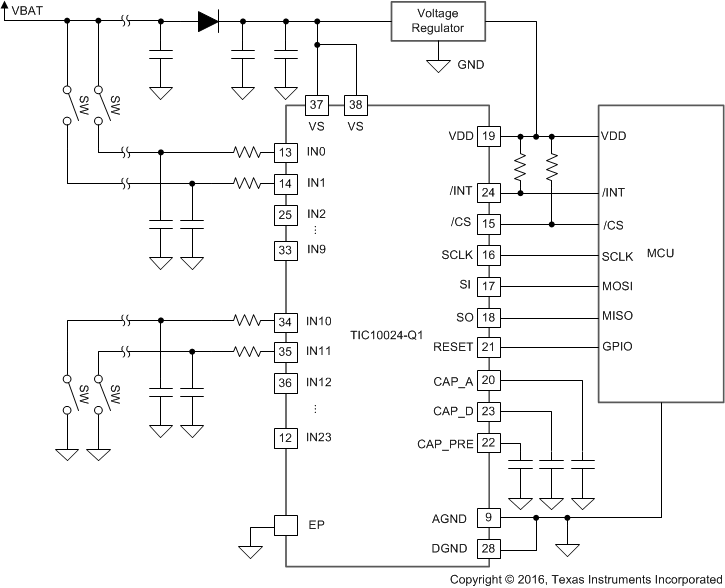

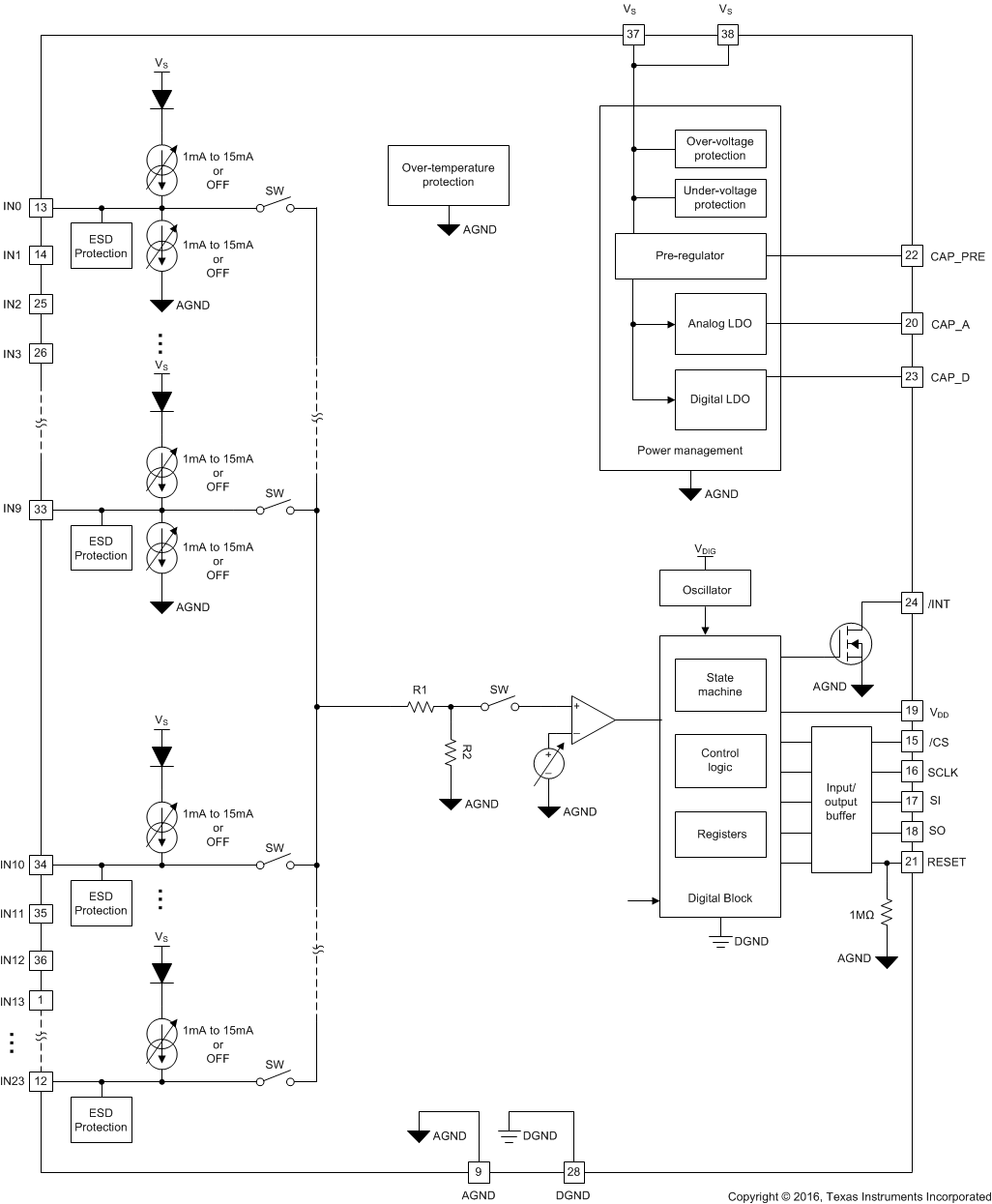

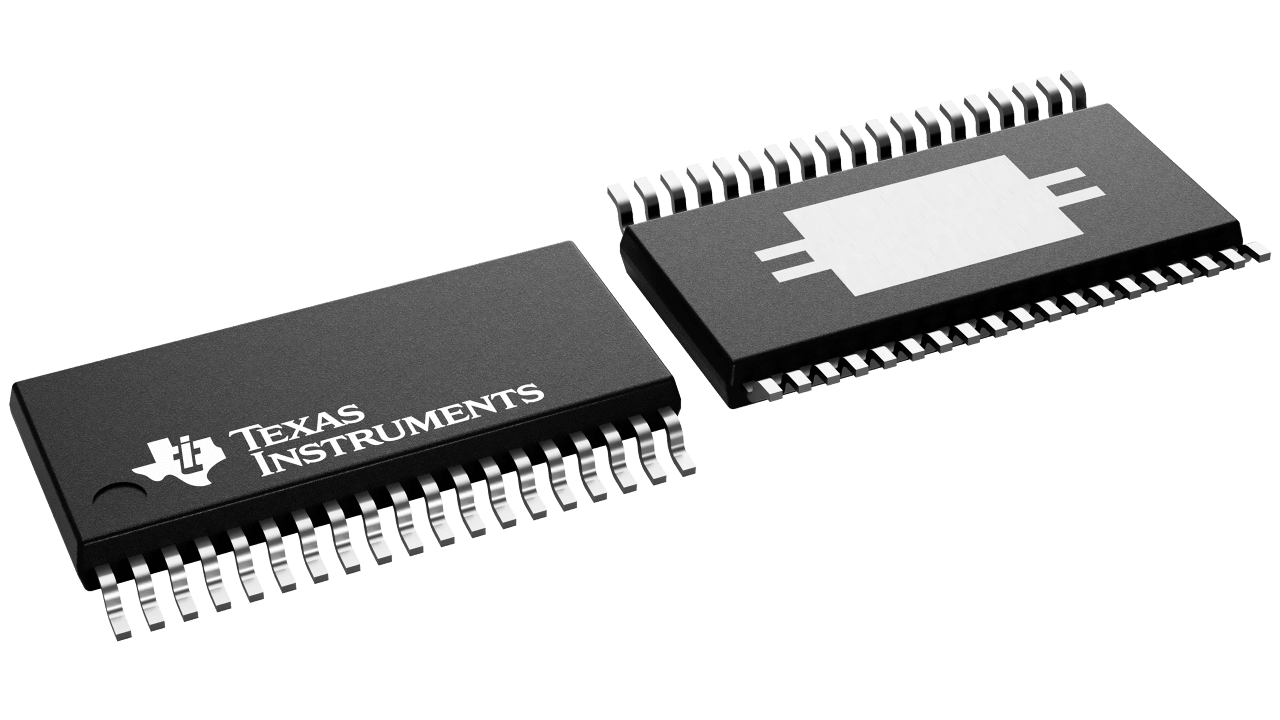

The TIC10024-Q1 is an advanced Multiple Switch Detection Interface (MSDI) device designed to detect external switch status in a 12-V automotive system. The TIC10024-Q1 features a comparator with adjustable thresholds to monitor digital switches independently of the MCU. The device monitors 24 direct switch inputs, with 10 inputs configurable to monitor switches connected to either ground or battery. There are 6 unique wetting current settings that can be programmed for each input to support different application scenarios. The device supports wake-up operation on all switch inputs to eliminate the need to keep the MCU active continuously, thus reducing power consumption of the system. The TIC10024-Q1 also offers integrated fault detection and ESD protection for improved system robustness. The TIC10024-Q1 supports 2 modes of operations: continuous and polling mode. In continuous mode, wetting current is supplied continuously. In polling mode, wetting current is turned on periodically to sample the input status based on a programmable timer, thus the system power consumption is significantly reduced.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Input/output voltage (max) (V) | 40 |
| Input/output voltage (min) (V) | -24 |
| IO current (mA) | 1, 2, 5, 10, 15 |
| Logic voltage (max) (V) | 5.5 |
| Logic voltage (min) (V) | 3 |
| Number of input channels | 24 |
| Operating voltage (max) (V) | 35 |
| Operating voltage (min) (V) | 4.5 |
| Environment and package | |
| Operating temperature range (°C) | -40 to 125 |
| Other | |
| Features | Configurable wetting current, Interrupt wake-up operation, Overvoltage warning, Polling mode, SPI, Undervoltage warning, Withstands load dump condition and reverse polarity condition |
| Interface type | SPI |
| Rating | Automotive |
| TI functional safety category | Functional Safety-Capable |
