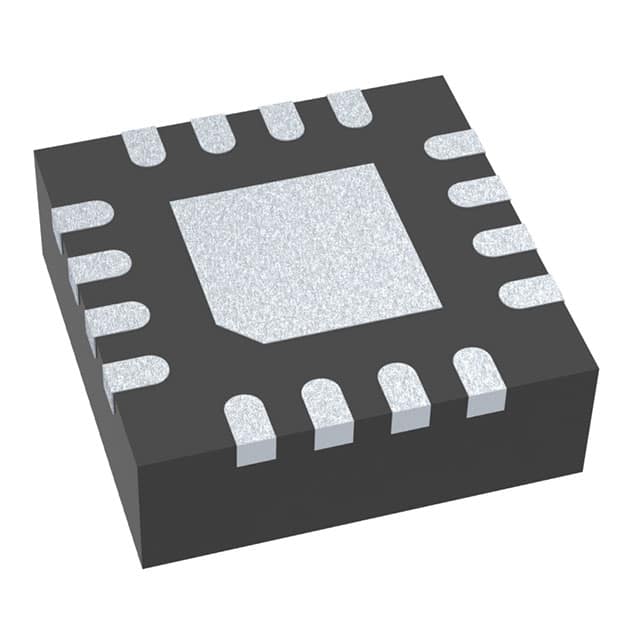

IC OPAMP DIFF 1 CIRCUIT 16VQFN
All alternatives
View full reportTechnical parameters
Key specs
Supply voltage3 ~ 5.25 V
Gain bandwidth product3 GHzTyp
Input offset voltage1 mVTyp
Quiescent current37.7 mATyp
Channels1
| Power | |
|---|---|
| Current - Input Bias | 8 µA |
| Current - Output / Channel | 96 mA |
| Current - Supply | 37.7mA |
| Voltage - Supply Span (Max) | 5.25 V |
| Voltage - Supply Span (Min) | 3 V |
| AC and DC characteristics | |
| -3db Bandwidth | 2 GHz |
| Gain Bandwidth Product | 3 GHz |
| Slew Rate | 6600V/µs |
| Voltage - Input Offset | 1 mV |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~125°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (3x3) |
| Other | |
| Amplifier Type | Differential |
| Base Product Number | THS4509 |
| Mfr | Texas Instruments |
| Number of Circuits | 1 |
| Output Type | Differential |
| Product Status | Active |
| Series | Automotive, AEC-Q100 |
