Figure 4-1. THS4031: D Package…

THS4031ID

ActiveInstrumentation, OP Amps, Buffer AmpsSOIC

IC VOLTAGE FEEDBACK 1 CIRC 8SOIC

THS4031ID is a single-channel, 100MHz bandwidth, low-noise high-speed voltage feedback operational amplifier in an 8-pin SOIC package, operating from -40°C to 85°C, with 200mA output drive and offset nulling pins.Checked against the datasheet

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Key specs

Supply voltage9 ~ 32 V

Gain bandwidth product100 MHzMax · 100 MHz (Gain = -1V/V or 2V/V，VCC = ±15V)，90 MHz (Gain = -1V/V or 2V/V，VCC = ±5V)

Input offset voltage300 µVTyp · Max 2 mV (VCC = ±5V or ±15V，TA = 25°C)，Max 3 mV (VCC = ±5V or ±15V，TA = full range)

Quiescent current7.5 mATyp

Channels1

Datasheet-verified parameters

25 items

Parameter	Value and test conditions	Source
Supply voltage	Dual-supply: Min ±4.5V, Nom ±15V, Max ±16V; Single-supply: Min 9V, Nom 30V, Max 32V
Small-signal bandwidth (-3dB)	100 MHz (Gain = -1V/V or 2V/V, VCC = ±15V); 90 MHz (Gain = -1V/V or 2V/V, VCC = ±5V)
Input offset voltage	Typ 0.3 mV, Max 2 mV (VCC = ±5V or ±15V, TA = 25°C); Max 3 mV (VCC = ±5V or ±15V, TA = full range)
Supply current	7.5 mA per channel
Channels	One
Package	SOIC (D), 8-Pin
Operating free-air temperature	-40°C to 85°C (I-suffix)
Grade	Industrial (I-suffix)
RoHS	Call TI
Recommended Operating Conditions	VCC Dual: ±4.5V to ±16V; VCC Single: 9V to 32V; TA: -40°C to 85°C
Absolute Maximum Ratings	Supply voltage: 33V; Input voltage: ±VCC; Output current: 240mA; Differential input voltage: ±1.5V; Continuous input current: 10mA; Operating free-air temperature: -40°C to 85°C; Junction temperature: 150°C; Storage temperature: -65°C to 150°C
Slew rate	100 V/μs (Gain = -1V/V, VCC = ±15V, 20V step); 80 V/μs (Gain = -1V/V, VCC = ±5V, 5V step)
Settling time	70 ns (To 0.1%, gain = -1V/V, VCC = ±15V, 5V step); 55 ns (To 0.1%, gain = -1V/V, VCC = ±5V, 2.5V step)
Input voltage noise	1.2 nV/√Hz (VCC = ±5V or ±15V, f > 10kHz)
Input current noise	2.3 pA/√Hz (VCC = ±5V or ±15V, f > 10kHz)
Total harmonic distortion	-81 dBc (Gain = 2V/V, VCC = ±5V or ±15V, f = 1MHz, VO(pp) = 2V)
Open-loop gain	Min 93 dB, Typ 100 dB (VCC = ±15V, VO = ±10V, TA = 25°C); Min 92 dB (VCC = ±15V, VO = ±10V, TA = full range)
Input bias current	Typ 9 μA, Max 20 μA (VCC = ±5V or ±15V, TA = 25°C); Max 33 μA (VCC = ±5V or ±15V, TA = full range)
Input offset current	Typ 30 nA, Max 250 nA (VCC = ±5V or ±15V, TA = 25°C); Max 400 nA (VCC = ±5V or ±15V, TA = full range)
Common-mode input voltage range	Min ±13.5V, Max ±14.3V (VCC = ±15V); Min ±3.8V, Max ±4.3V (VCC = ±5V)
Common-mode rejection ratio	Min 85 dB, Typ 95 dB (VCC = ±15V, VICR = ±12V, TA = 25°C); Min 80 dB (VCC = ±15V, VICR = ±12V, TA = full range)
Input resistance	2 MΩ
Input capacitance	1.5 pF
ESD Ratings	HBM: ±1000 V; CDM: ±1000 V
Output current drive	200 mA (typical)

All parameters (19)ExpandCollapse

Power
Current - Input Bias	3 µA
Current - Supply	8.5mA
Voltage - Supply Span (Max)	32 V
Voltage - Supply Span (Min)	9 V
AC and DC characteristics
-3db Bandwidth	100 MHz
Slew Rate	100V/µs
Voltage - Input Offset	500 µV
Environment and package
Mounting Type	Surface Mount
Operating Temperature	-40°C~85°C
Package	Tube
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Other
Amplifier Type	Voltage Feedback
Base Product Number	THS4031
Mfr	Texas Instruments
Number of Circuits	1
Output Type	-
Product Status	Active
Series	-

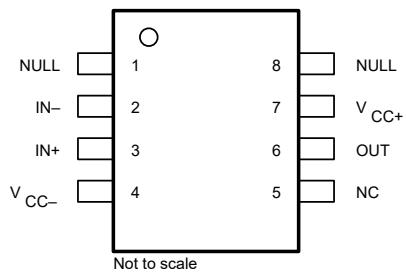

Pinout and package

Pin	Name	Function
1	NULL	(Voltage offset adjust)
2	IN-	(Inverting input)
3	IN+	(Noninverting input)
4	VCC-	(Negative power supply)
5	NC	(No connection)
6	OUT	(Output of amplifier)
7	VCC+	(Positive power supply)
8	NULL	(Voltage offset adjust)
