Traco PowerSwitzerland

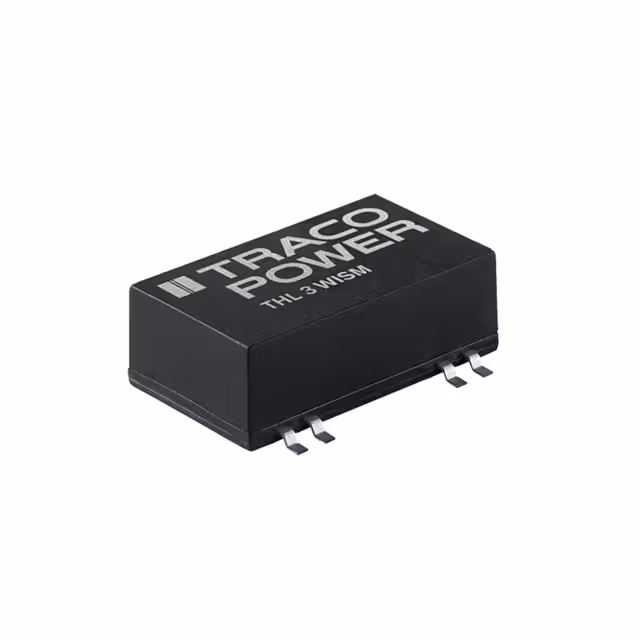

DC DC CONVERTER 24V 3W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage9 ~ 36 V
Output voltage24 V
Output current125 mAMax
Power3 WMax
IsolationIsolated
| Power | |
|---|---|
| Current - Output (Max) | 125mA |
| Power (Watts) | 3 W |
| Voltage - Input (Max) | 36V |
| Voltage - Input (Min) | 9V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(WithDerating) |
| Package | Tube |
| Package / Case | 16-SMD Module, 7 Leads |
| Size / Dimension | 0.94" L x 0.54" W x 0.32" H (24.0mm x 13.7mm x 8.3mm) |
| Supplier Device Package | - |
| Other | |
| Applications | ITE (Commercial) |
| Base Product Number | THL 3 |
| Efficiency | 80% |
| Features | Remote On/Off, SCP |
| Mfr | Traco Power |
| Number of Outputs | 1 |
| Product Status | Not For New Designs |
| Series | THL 3WISM (3W) |
| Type | Isolated Module |
