NXP USA Inc.Netherlands

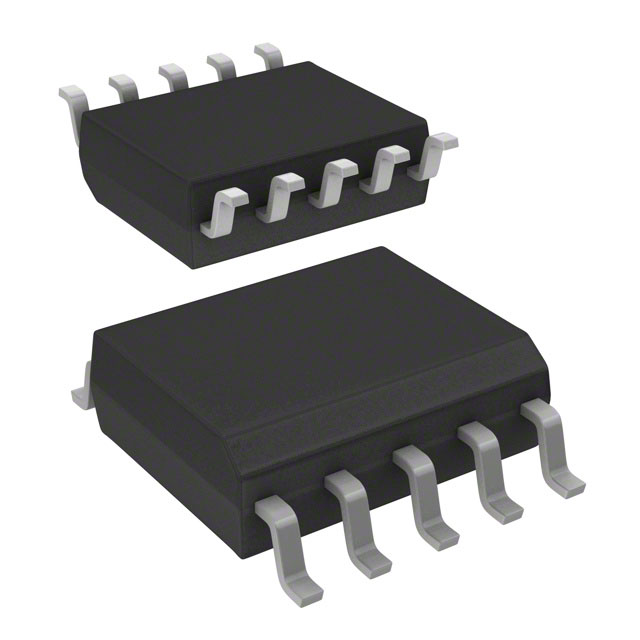

IC OFFLINE SWITCH FLYBACK 10SO
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Breakdown | - |
| Voltage - Start Up | 17.5 V |
| Voltage - Supply (Vcc/Vdd) | 0V ~ 120V |
| AC and DC characteristics | |
| Frequency - Switching | 25.5kHz ~ 128kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C ~ 125°C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | 10-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SO |
| Other | |
| Base Product Number | TEA1938 |
| Control Features | EN, Soft Start |
| Duty Cycle | - |
| Fault Protection | Over Power, Over Temperature, Over Voltage |
| Internal Switch(s) | No |
| Mfr | NXP USA Inc. |
| Output Isolation | Isolated |
| Product Status | Obsolete |
| Series | GreenChip™ |
| Topology | Flyback |
