SL POWER / Advanced EnergyUnited States

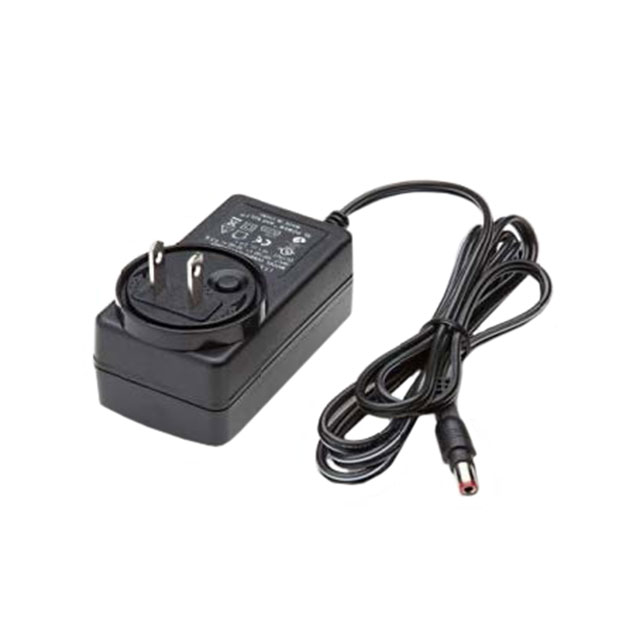

TE40A1203C01
AC DC Desktop, Wall Power AdaptersAC/DC WALL MOUNT ADAPTER 12V 41W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage12 V
Output current3.4 AMax
Power41 WMax
| Power | |
|---|---|
| Current - Output (Max) | 3.4A |
| No Load Power Consumption | 100mW (Max) |
| Power (Watts) | 41 W |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 12V |
| Environment and package | |
| Operating Temperature | -20°C ~ 50°C |
| Size / Dimension | 3.78" L x 2.17" W x 1.32" H (96.0mm x 55.0mm x 33.6mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, DEMKO, UL |
| Base Product Number | TE40A1203 |
| Cord Length | 57" (1.45m) |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| Manufacturer | SL POWER / Advanced Energy |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Packaging | Box |
| Part Status | Active |
| Polarization | Positive Center |
| Region Utilized | North America |
| Series | TE40 (40W) |
| Weight | 0.551 lb (249.93 g) |
