SL POWER / Advanced EnergyUnited States

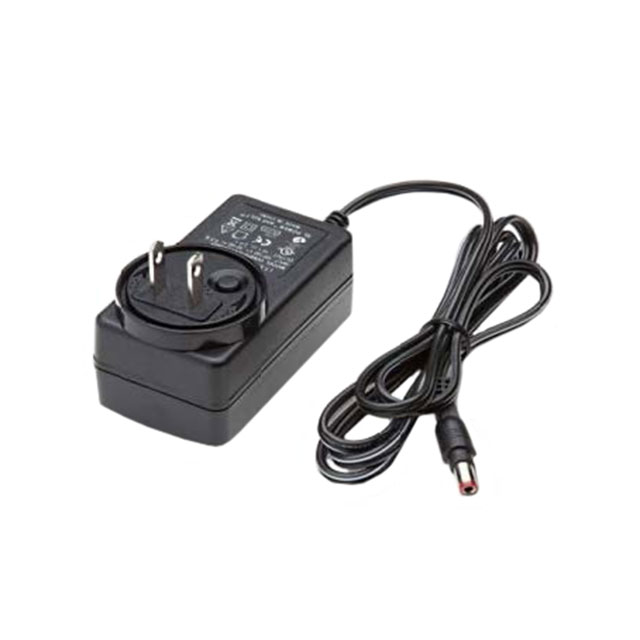

TE30A2403B01
AC DC Desktop, Wall Power AdaptersAC/DC WALL MOUNT ADAPTER 24V 32W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage24 V
Output current1.33 AMax
Power32 WMax
| Power | |
|---|---|
| Current - Output (Max) | 1.33A |
| No Load Power Consumption | 100mW (Max) |
| Power (Watts) | 32 W |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 24V |
| Environment and package | |
| Operating Temperature | -20°C ~ 40°C |
| Size / Dimension | 3.78" L x 2.17" W x 1.32" H (96.0mm x 55.0mm x 33.6mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, DEMKO, UL |
| Base Product Number | TE30A2403 |
| Cord Length | 57" (1.45m) |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P, Multi-Blade (Sold Separately) |
| Input Type | Fixed Blade, Multi-Blade (Sold Separately) |
| Manufacturer | SL POWER / Advanced Energy |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm |
| Packaging | Box |
| Part Status | Active |
| Polarization | Positive Center |
| Region Utilized | North America |
| Series | TE30 (30W) |
| Weight | 0.551 lb (249.93 g) |
