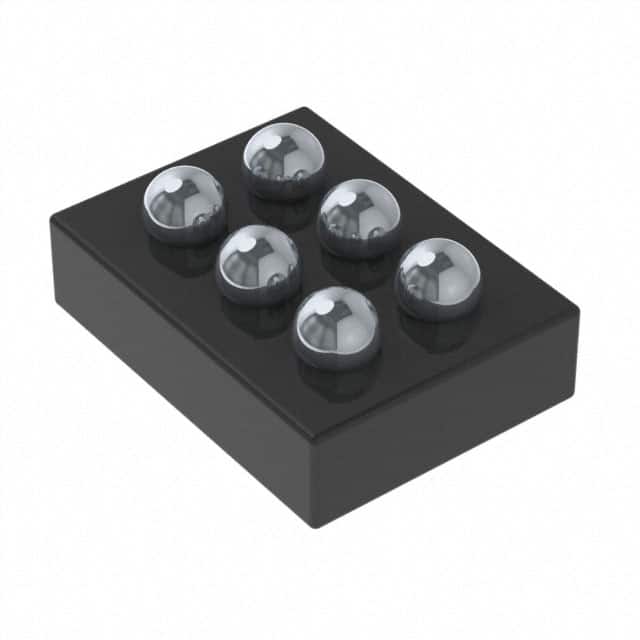

IC REG LINEAR 1.2V 1.5A 6WCSPF
All alternatives
View full reportTechnical parameters
Key specs
Output voltage1.2 V
Output current1.5 AMax
Input voltage≤ 5.5 V
Dropout voltage257 mVMax · 1.5A
Quiescent current40 µATyp
| Power | |
|---|---|
| Current - Output | 1.5A |
| Current - Quiescent (Iq) | 40 µA |
| Voltage Dropout (Max) | 0.257V @ 1.5A |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | 1.2V |
| AC and DC characteristics | |
| PSRR | 95dB (1kHz) |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 6-XFBGA, WLCSP |
| Supplier Device Package | 6-WCSPF (0.80x1.2) |
| Other | |
| Base Product Number | TCR15AG12 |
| Control Features | Enable |
| Mfr | Toshiba Semiconductor and Storage |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Type | Fixed |
| Product Status | Active |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Series | TCR15AG |
