TCR15AG10

ActiveVoltage Regulators - Linear, Low Drop Out (LDO) Regulators

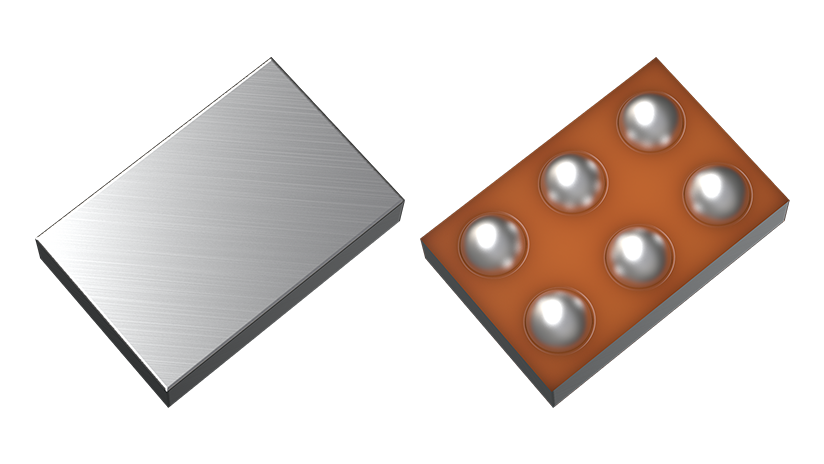

The TCR15AG10 is a Toshiba Low-Dropout Regulators (LDO Regulators) product. 1500 mA Fixed Output LDO Regulator, 1.0 V, WCSP6F Mobile equipment / Camera/Sensor power supply / RF power supply｜ Find data sheet and product information from the product details page.

See alternatives Ask AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

Power
[Abs] Input Voltage (V IN)	6.0 V
[Desc] Inrush current reduction	Y
[Desc] Overcurrent protection	Y
[Elec] Dropout Voltage (Typ.) * (V DO)	120 mV
[Elec] Operating Input Voltage * (V IN)	VOUT+VDO to VBIAS V
[Elec] Operating Output Current (Max) (I OUT)	1500 mA
[Elec] Output Voltage Lineup (V OUT)	0.6 to 3.6 V
[Elec] Output Voltage (Typ.) (V OUT)	1.0 V
[Elec] Quiescent Current (Typ.) * (I B(ON))	25 μA
[Elec] Stand-by Current (Typ.) * (I B(OFF))	0.04 μA
AC and DC characteristics
[Elec] Output Noise Voltage (Typ.) * (V NO)	52 μVrms
[Elec] Output Voltage Accuracy (±) * (-)	1.0 %
[Elec] Ripple Rejection Ratio (Typ.) * (R.R.)	95 dB
Environment and package
[Abs] Power Dissipation (mounted on glass-epoxy board(40mm×40mm)) (P D)	1350 mW
[Desc] RoHS Compatible Product(s) (#)	Available
[Desc] Thermal shutdown	Y
[Elec] Operating Temperature (T opr)	-40 to 85 ℃
Other
[Desc] Application	Mobile equipment / Camera/Sensor power supply / RF power supply
[Desc] Auto-discharge	Y
[Desc] Feature	Low dropout voltage / High ripple rejection ratio / Fast load transient response / Small package
[Desc] Output Type	Fixed Output
[Elec] Output Capacitance (C OUT)	≥4.7 μF
