View full reportTechnical parameters
Key specs
Rated current5 A
Rated voltage250 V
Response timeSlow
Breaking capacity200 A
| Power | |
|---|---|
| Breaking Capacity @ Rated Voltage | 200A |
| Current Rating (Amps) | 5 A |
| Voltage Rating - AC | 250 V |
| Environment and package | |
| Mounting Type | Requires Holder |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Package / Case | 5mm x 20mm |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Other | |
| Approval Agency | CSA, KC, PSE/JET, UL |
| Base Product Number | TCC |
| Color | - |
| DC Cold Resistance | 0.0344 Ohms |

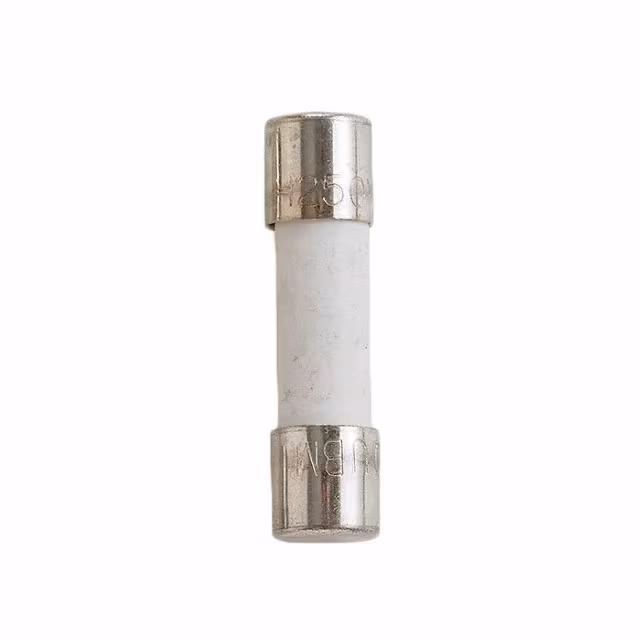

| Fuse Type | Cartridge, Ceramic |
| Melting I²t | 35.087 |
| Mfr | OptiFuse |
| Product Status | Active |
| Response Time | Slow Blow |
| Series | TCC |
