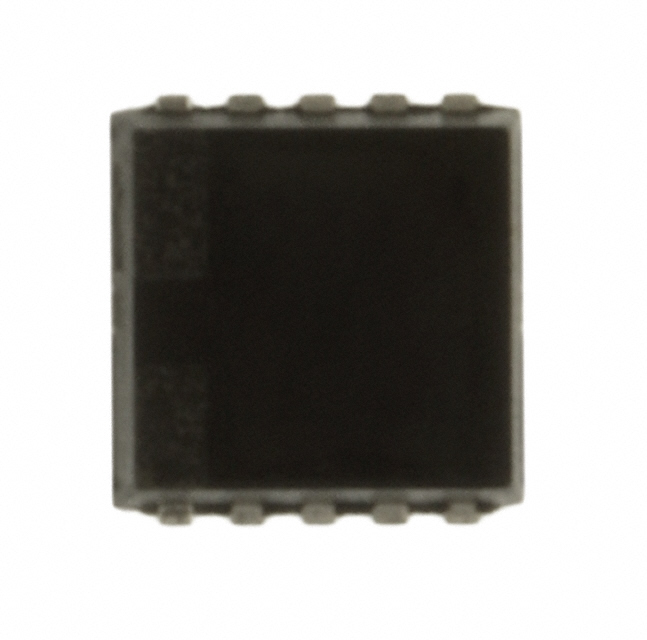

IC LED DRVR LIN DIM 150MA 10SON
All alternatives
View full reportTechnical parameters
Key specs
Outputs3
Output current per channel150 mAMax
Input voltage2.8 ~ 5.5 V
| Power | |
|---|---|
| Current - Output / Channel | 150mA |
| Voltage - Output | - |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Supply (Min) | 2.8V |
| AC and DC characteristics | |
| Frequency | - |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package | Cut Tape (CT) |
| Package / Case | 10-SMD, Flat Lead |
| Supplier Device Package | 10-SON (3x3) |
| Other | |
| Applications | Backlight |
| Base Product Number | TCA62724 |
| Dimming | PWM |
| Internal Switch(s) | Yes |
| Mfr | Toshiba Semiconductor and Storage |
| Number of Outputs | 3 |
| Product Status | Obsolete |
| Series | - |
| Topology | - |
| Type | Linear |
