View full reportTechnical parameters
| Power | |
|---|---|
| 最大供电电压 | 5.5V |
| 最大工作电压 | 5.5V |
| 最小供电电压 | 2V |
| 最小工作电压 | 2V |
| AC and DC characteristics | |
| td-传输延迟时间 | 18ns |
| 传播延迟时间 | 18ns |
| 最大工作频率 | 90MHZ |
| Environment and package | |

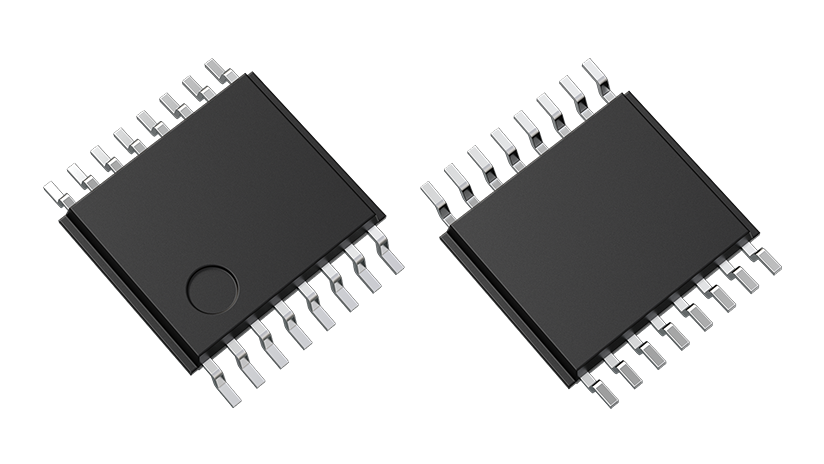

| 封装类型1 | TSSOP |
| 尺寸规格1 | 5*4.4*1.2mm |
| Other | |
| 位数 | 4bit |
| 引脚数量1 | 16 |
