Microchip TechnologyUnited States

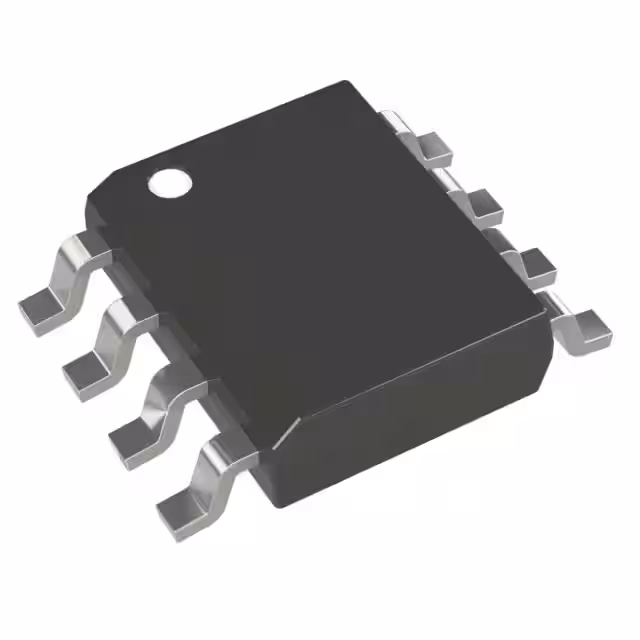

IC REG CHARG PUMP INV 10MA 8SOIC
All alternatives
View full reportTechnical parameters
Key specs
Input voltage2.4 ~ 5.5 V
Output current10 mAMax
Switching frequency12 kHz
| Power | |
|---|---|
| Current - Output | 10mA |
| Voltage - Input (Max) | 5.5V |
| Voltage - Input (Min) | 2.4V |
| Voltage - Output (Max) | - |
| Voltage - Output (Min/Fixed) | -2Vin |
| AC and DC characteristics | |
| Frequency - Switching | 12kHz |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C(TA) |
| Package | Tube |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Base Product Number | TC682 |
| Function | Ratiometric |
| Mfr | Microchip Technology |
| Number of Outputs | 1 |
| Output Configuration | Negative |
| Output Type | Fixed |
| Product Status | Active |
| Series | - |
| Synchronous Rectifier | No |
| Topology | Charge Pump |
