Cornell Dubilier Electronics (CDE)United States

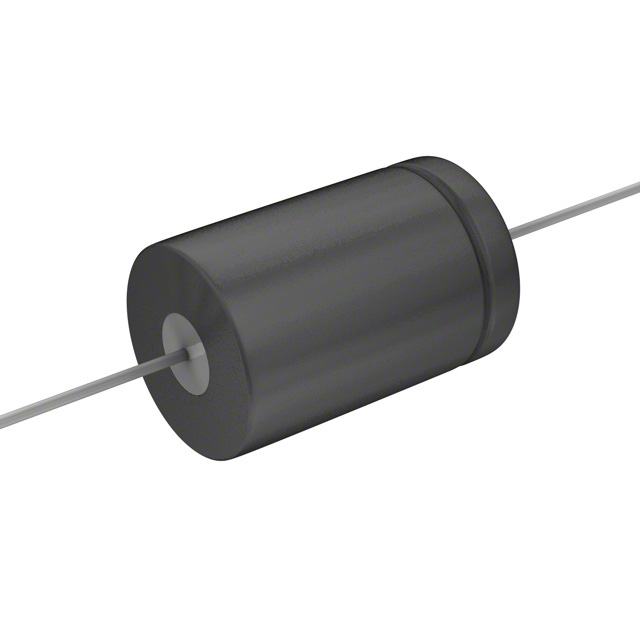

CAP ALUM 12UF 350V AXIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance12 µF
Rated voltage350 V
Tolerance50 %
ESR12.71 ΩMax · 120Hz
Lifetime1 kh85°C
| Power | |
|---|---|
| Voltage - Rated | 350 V |
| AC and DC characteristics | |
| Ripple Current @ High Frequency | 298.75 mA @ 2.4 kHz |
| Ripple Current @ Low Frequency | 239 mA @ 120 Hz |
| Environment and package | |
| Height - Seated (Max) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | Axial, Can |
| Size / Dimension | 0.750" Dia x 1.125" L (19.05mm x 28.58mm) |
| Surface Mount Land Size | - |
| Other | |
| Applications | General Purpose |
| Capacitance | 12 µF |
| ESR (Equivalent Series Resistance) | 12.71Ohm @ 120Hz |
| Lead Spacing | - |
| Mfr | Cornell Dubilier Electronics (CDE) |
| Polarization | Polar |
| Product Status | Obsolete |
| Ratings | - |
| Series | TC |
| Tolerance | -10%, +50% |
