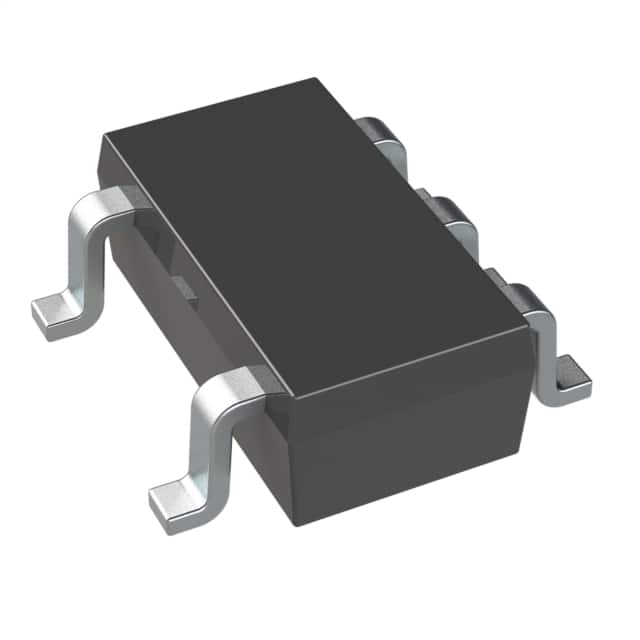

TC2054-3.3VCTTR
Microchip TechnologyUnited States

TC2054-3.3VCTTR

ActiveVoltage Regulators - LinearSOT-23-5

IC REG LINEAR 3.3V 50MA SOT23-5

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Output voltage3.3 V
Output current50 mAMax
Input voltage≤ 6 V
Dropout voltage70 mVMax · 50mA
Quiescent current80 µATyp
Power
Current - Output50mA
Current - Quiescent (Iq)80 µA
Voltage Dropout (Max)0.07V @ 50mA
Voltage - Input (Max)6V
Voltage - Output (Max)-
Voltage - Output (Min/Fixed)3.3V
AC and DC characteristics
PSRR50dB (100kHz)
Environment and package
Mounting TypeSurface Mount
Operating Temperature-40°C~125°C
PackageTape & Reel (TR)
Package / CaseSC-74A, SOT-753
Supplier Device PackageSOT-23-5
Other
Base Product NumberTC2054
Control FeaturesEnable
MfrMicrochip Technology
Number of Regulators1
Output ConfigurationPositive
Output TypeFixed
Product StatusActive
Protection FeaturesOver Current, Over Temperature
Series-
