TC-400-TM-X
AmphenolUnited States

TC-400-TM-X

ActiveCoaxial Connector (RF) Assemblies

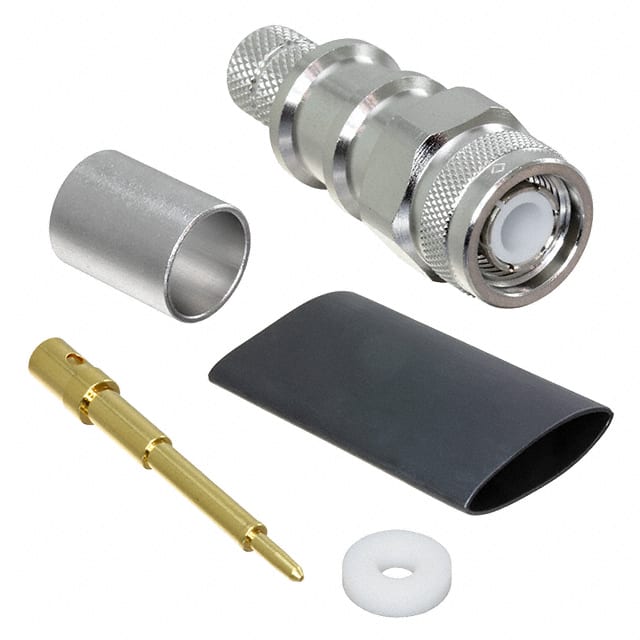

CONN TNC PLUG STRAIGHT CRIMP

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Connector styleTNC
GenderMale
Impedance50 Ω
Max frequency6 GHzMax
AC and DC characteristics
Frequency - Max6 GHz
Impedance50Ohm
Environment and package
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Operating Temperature-65°C~165°C
PackageBulk
Other
Base Product NumberTC-400
Body FinishWhite Bronze
Body MaterialBrass
Cable GroupLMR-400
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleTNC
Connector TypePlug, Male Pin
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeThreaded
Features-
Housing ColorSilver
Includes-
Ingress Protection-
Insertion Loss-
Mating Cycles500
MfrAmphenol Times Microwave Systems
Number of Ports1
Product StatusActive
SeriesTC
Shield TerminationCrimp

Documents

No documents are linked to this part yet.
