View full reportTechnical parameters
| Power | |
|---|---|
| IC-最大集电极电流 | 0.1A |
| VCEO-CE结击穿电压 | 45V |
| VCEO-集射级击穿电压 | 45V |
| AC and DC characteristics | |
| fT-变换频率 | NMHZ |
| hFE-最小直流增益 | 200 |
| Hfe-最小直流增益 | 200 |
| Environment and package | |

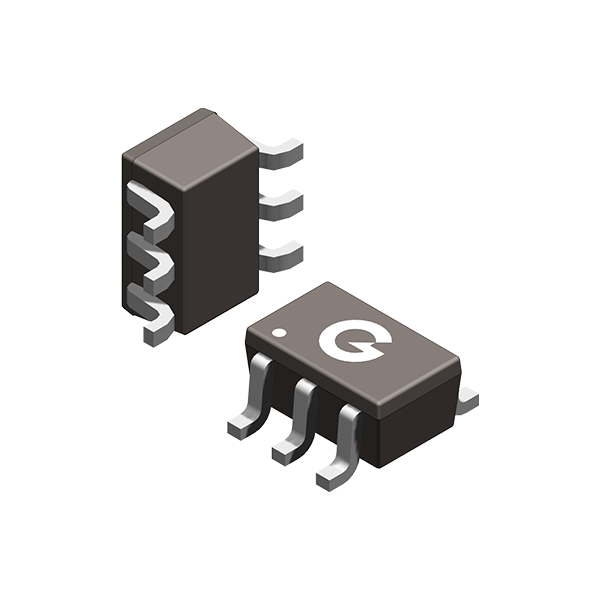

| 封装类型1 | SOT363 |
| 最大工作温度 | 150℃ |
| Other | |
| Pd-功率耗散 | 0.2W |
| Pd-最大功率耗散 | 0.2W |
| VCE(sat)-CE结饱和压降 | 0.6V |
| VCE(sat)-集射级饱和压降 | 0.6V |
| 引脚数量1 | 6 |
