Littelfuse Inc.United States

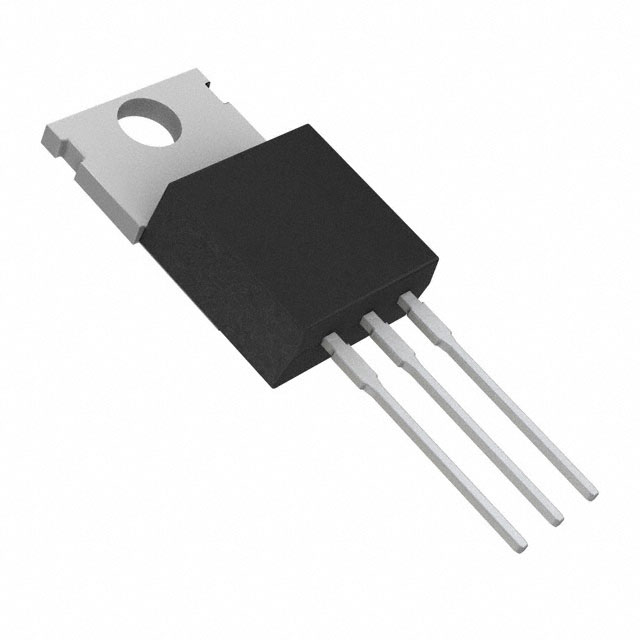

TRIAC 400V 6A TO220AB
All alternatives
View full reportTechnical parameters
Key specs
Off-state voltage400 V
On-state current6 AMax
Gate trigger current25 mAMax
| Power | |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 25 mA |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 60A @ 60Hz |
| Current - On State (It (RMS)) (Max) | 6 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - Off State | 400 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package | Tube |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
| Other | |
| Base Product Number | T2500D |
| Configuration | Single |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | - |
| Triac Type | Standard |
