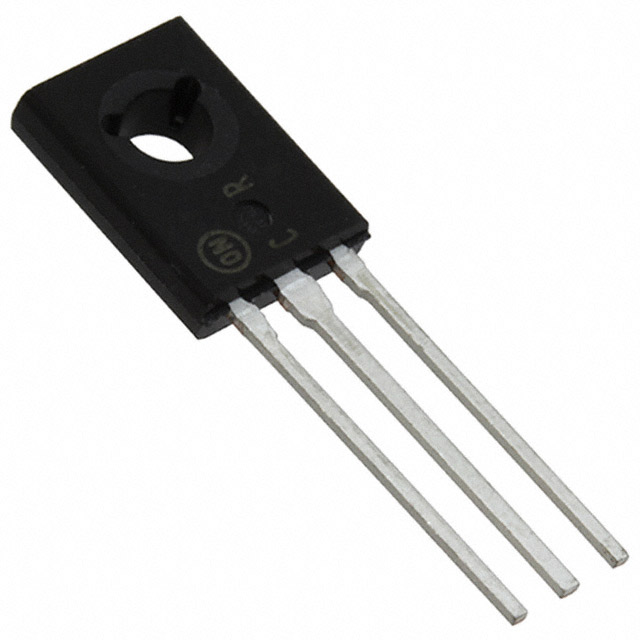

TRIAC SENS GATE 200V 2.5A TO126
All alternatives
View full reportTechnical parameters
Key specs
Off-state voltage200 V
On-state current2.5 AMax
Gate trigger current10 mAMax
| Power | |
|---|---|
| Current - Gate Trigger (Igt) (Max) | 10 mA |
| Current - Hold (Ih) (Max) | 30 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 25A @ 60Hz |
| Current - On State (It (RMS)) (Max) | 2.5 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.2 V |
| Voltage - Off State | 200 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Package | Bulk |
| Package / Case | TO-225AA, TO-126-3 |
| Supplier Device Package | TO-126 |
| Other | |
| Base Product Number | T232 |
| Configuration | Single |
| Mfr | onsemi |
| Product Status | Obsolete |
| Series | - |
| Triac Type | Logic - Sensitive Gate |
