Cornell Dubilier Electronics (CDE)United States

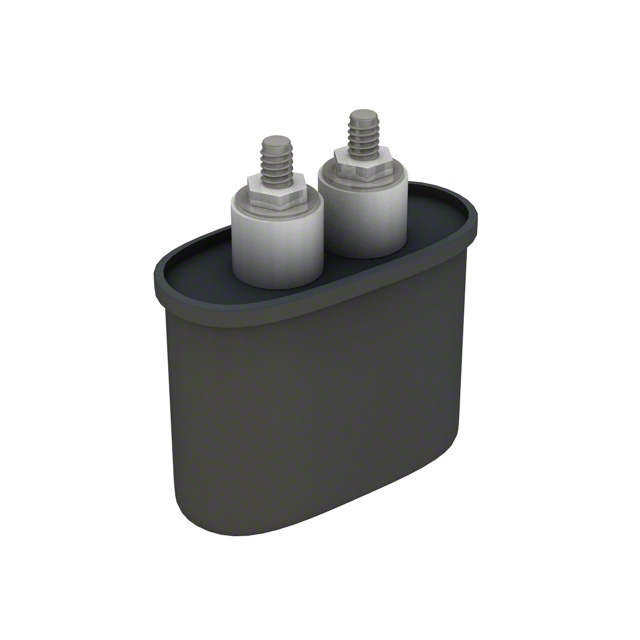

CAP FILM 0.5UF 10% 2KVDC RADIAL
All alternatives
View full reportTechnical parameters
Key specs
Capacitance500 nF
Rated voltage2 kV
Tolerance10 %
| Power | |
|---|---|
| Voltage Rating - AC | - |
| Voltage Rating - DC | 2000V (2kV) |
| Environment and package | |
| Height - Seated (Max) | 2.190" (55.63mm) |
| Mounting Type | Chassis Mount, Requires Holder/Bracket |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Radial, Can |
| Size / Dimension | 2.160" L x 1.310" W (54.86mm x 33.27mm), Lip |
| Other | |
| Applications | EMI, RFI Suppression |
| Capacitance | 0.5 µF |
| Dielectric Material | Paper, Metallized |
| Features | High Temperature |
| Lead Spacing | 0.810" (20.57mm) |
| Mfr | Cornell Dubilier Electronics (CDE) |
| Product Status | Obsolete |
| Ratings | - |
| Series | T |
| Termination | Threaded, Male |
| Tolerance | ±10% |
