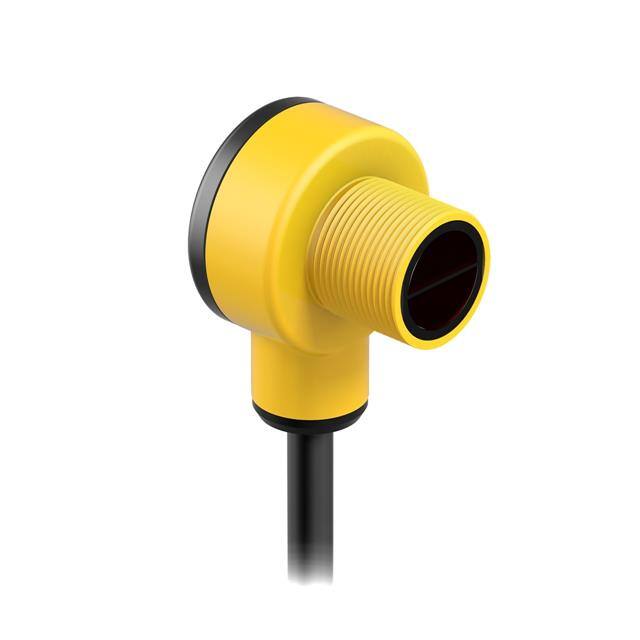

T18SP6D W/30
Banner Engineering CorporationUnited States

T18SP6D W/30

ObsoleteOptical Sensors - Photoelectric, Industrial

RANGE: 500 MM; INPUT: 10-30V DC

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Voltage - Supply10V ~ 30V
Environment and package
Operating Temperature-40°C~70°C
PackageBox
Other
Adjustment TypeAdjustable, Potentiometer
Base Product NumberT18SP6
Cable Length354.33" (9m)
Connection MethodCable
Ingress ProtectionNEMA 6P, IEC IP67, IEC IP69K
Light SourceInfrared
MfrBanner Engineering Corporation
Output ConfigurationPNP - Dark-ON/Light-ON - Selectable
Product StatusObsolete
Response Time3ms
Sensing Distance19.685" (500mm)
Sensing MethodDiffuse
SeriesT18
