Red Lion ControlsUnited States

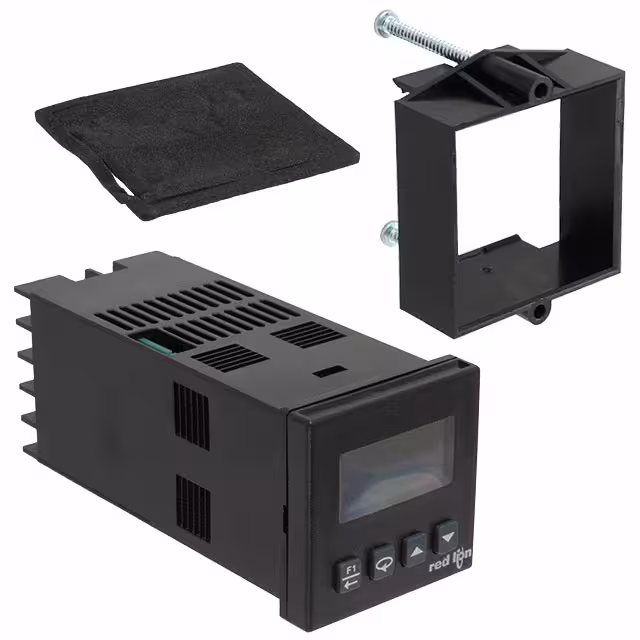

CONTROL TEMP VOLT OUT 24V 18-36V
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage - Supply | 24VAC, 18 ~ 36VDC |
| Environment and package | |
| Display Characters - Height | 0.299" (7.60mm), 0.200" (5.10mm) |
| Mounting Type | Panel Mount |
| Operating Temperature | 0°C~50°C |
| Package | Box |
| Panel Cutout Dimensions | Square - 45.00mm x 45.00mm |
| Other | |
| Communications | - |
| Control Method | On/Off, Proportional (PID) |
| Display Type | LCD - Dual Color Characters, Backlight |
| Features | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Input Range | -200°C ~ 2315°C |
| Mfr | Red Lion Controls |
| Number of Characters Per Row | 4, 4 |
| Output Type | Voltage (External SSR) |
| Product Status | Obsolete |
| Series | T16 |
| Termination Style | Screw Terminal |
| Type | Temperature Controller (RTD, Type B, C, E, J, K, N, R, S, T) |
| Weight | 0.395 lb (179.17 g) |
Documents
No documents are linked to this part yet.
