Analog Technologies, Inc.United States

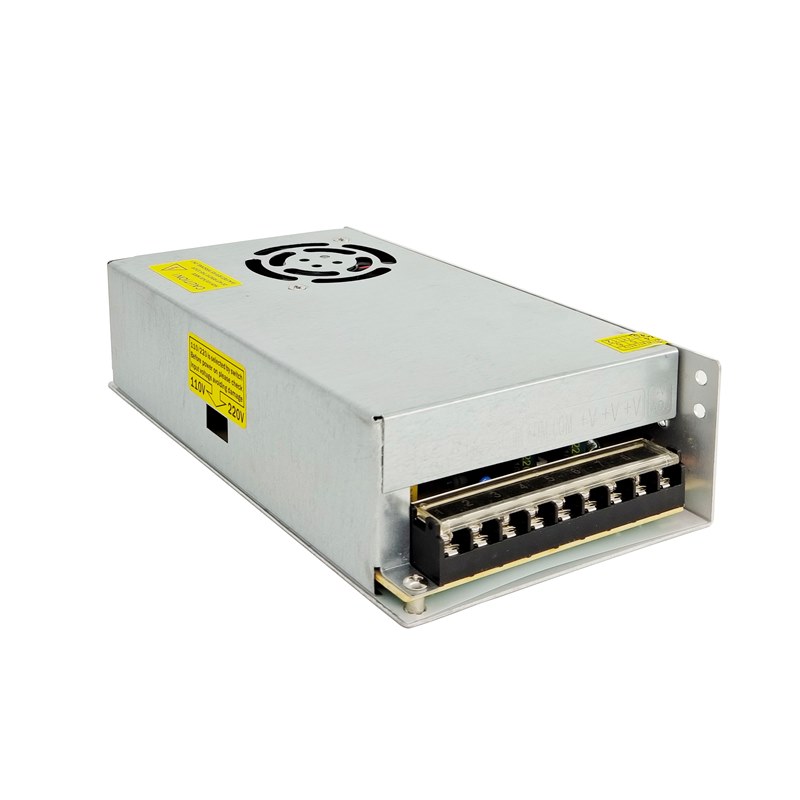

AC/DC CONVERTER 12V 300W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage12 V
Output current25 AMax
Outputs1
| Power | |
|---|---|
| Current - Output 1 | 25 A |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Environment and package | |
| Mounting Type | Chassis Mount |
| Operating Temperature | -10°C ~ 60°C |
| Package | Tape & Box (TB) |
| Size / Dimension | 7.87" L x 4.53" W x 1.97" H (199.9mm x 115.1mm x 50.0mm) |
| Other | |
| Applications | ITE (Commercial) |
| Approval Agency | - |
| Efficiency | 85% |
| Features | Adjustable Output, Universal Input |
| Mfr | Analog Technologies, Inc. |
| Minimum Load Required | No |
| Number of Outputs | 1 |
| Product Status | Active |
| Series | - |
| Standard Number | - |
| Type | Enclosed |
