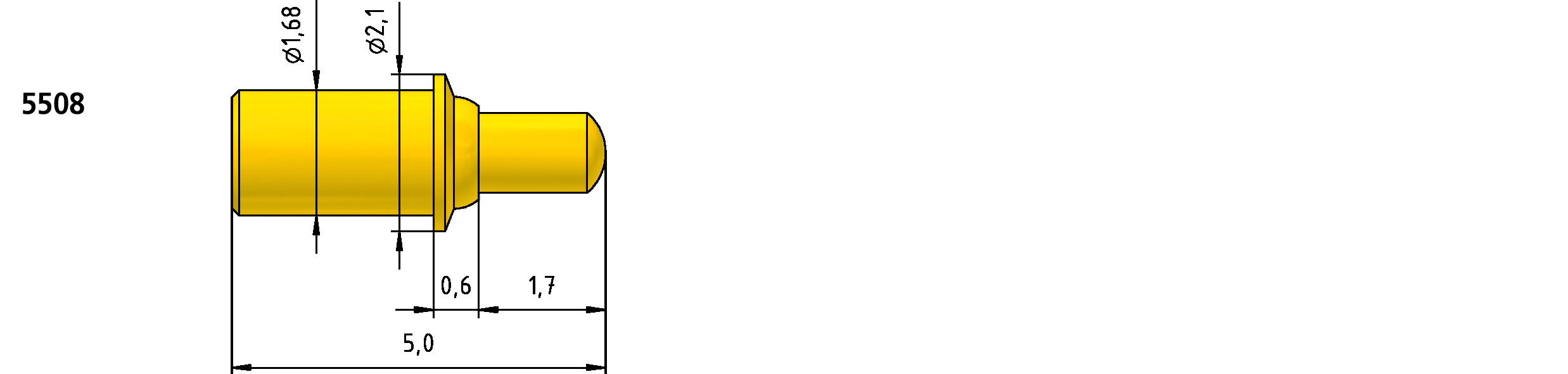

Series 5508
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Continuous current | 2.0 A |
| Environment and package | |
| Temperature range | -40 °C - +250 °C |
| Other | |
| 13 | 16 | 8 | 1.600 |
| Barrel | Brass, gold-plated |
| Center | 2.54 mm /100 mil |
| Full travel | 1.70 mm |
| Plunger | Brass, gold-plated |
| Pre-loaded spring force | 0.25 N |

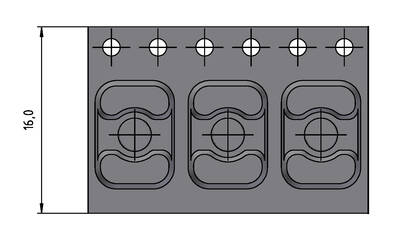

| Reel (RD/") | Width (R/mm) | Pitch (RP/mm) | Pieces (PCS) |
| Spring force at working travel | see high-temperature applications |
| Spring force at working travel (order index E) | 0.85 N |
| Typical continuity resistance | ≤ 20 mOhm |
| Working travel | 1.20 mm |
