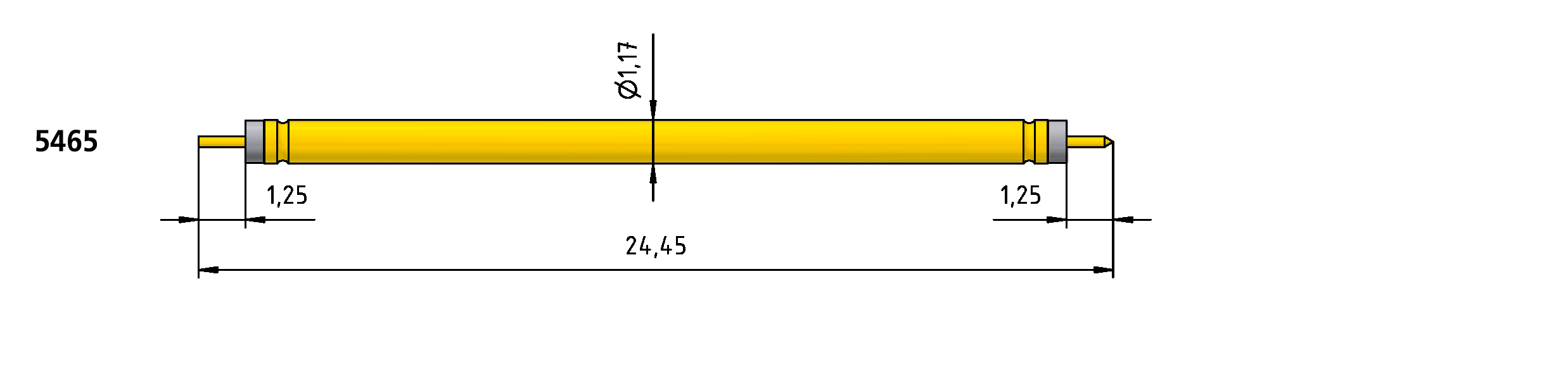

Series 5465
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Continuous current | 0.5 A |
| Environment and package | |
| Temperature range | -40 °C - +250 °C |
| Other | |
| Barrel | Brass, gold-plated |
| Center | 1.78 mm /70 mil |
| Electric strength | 1.000 V |
| Full travel | 2 x 1.25 mm |
| Plunger | CuBe, gold-plated |
| Pre-loaded spring force | 0.13 N |
| Spring force at working travel | see high-temperature applications |
| Spring force at working travel (order index E) | 0.28 N |
| Typical continuity resistance | ≤ 100 mOhm |
| Working travel | 2 x 0.60 mm |
