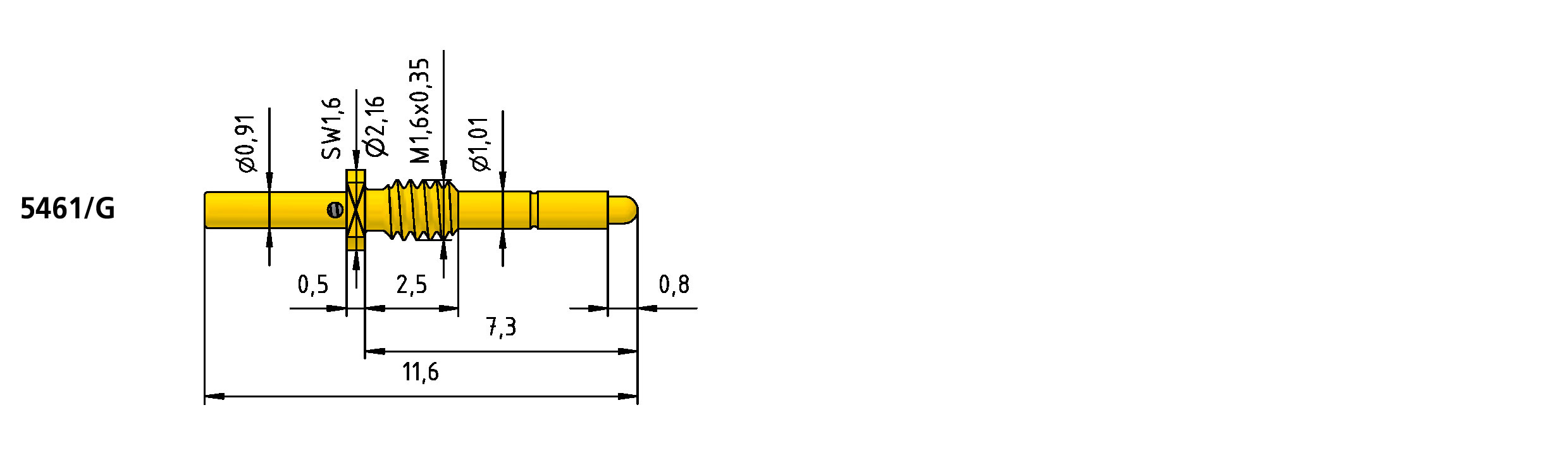

Series 5461/G
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Continuous current | 10.0 A |
| Environment and package | |
| Temperature range | -40 °C - +250 °C |
| Other | |
| Barrel | Brass, gold-plated |
| Center | 2.54 mm /100 mil |
| Full travel | 0.80 mm |
| Plunger | CuBe, gold-plated |
| Pre-loaded spring force | 0.90 N |
| Spring force at working travel | see high-temperature applications |
| Spring force at working travel (order index E) | 2.00 N |
| Typical continuity resistance | ≤ 10 mOhm |
| Working travel | 0.60 mm |
