Semtech CorporationUnited States
IC RF TXRX ISM<1GHZ 28VQFN
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 10.8mA ~ 12mA |
| Current - Transmitting | 20mA ~ 120mA |
| Power - Output | 20dBm |
| Voltage - Supply | 1.8V ~ 3.7V |
| AC and DC characteristics | |
| Frequency | 137MHz ~ 1.02GHz |
| Environment and package | |
| Memory Size | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |

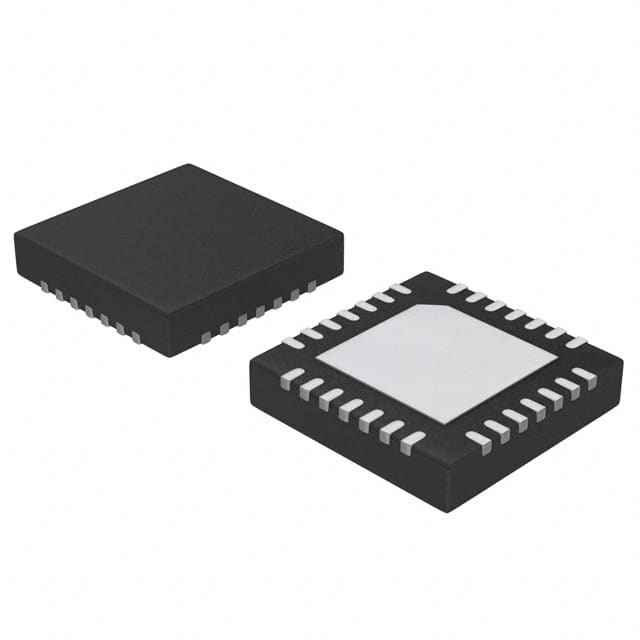

| Package / Case | 28-VQFN Exposed Pad |
| Supplier Device Package | 28-QFN (6x6) |
| Other | |
| Base Product Number | SX1236 |
| Data Rate (Max) | 300kbps |
| GPIO | 6 |
| Mfr | Semtech Corporation |
| Modulation | FSK, GFSK, GMSK, MSK, OOK |
| Product Status | Active |
| Protocol | - |
| RF Family/Standard | General ISM < 1GHz |
| Sensitivity | -123dBm |
| Serial Interfaces | SPI |
| Series | - |
| Type | TxRx Only |
