CUI Inc.United States

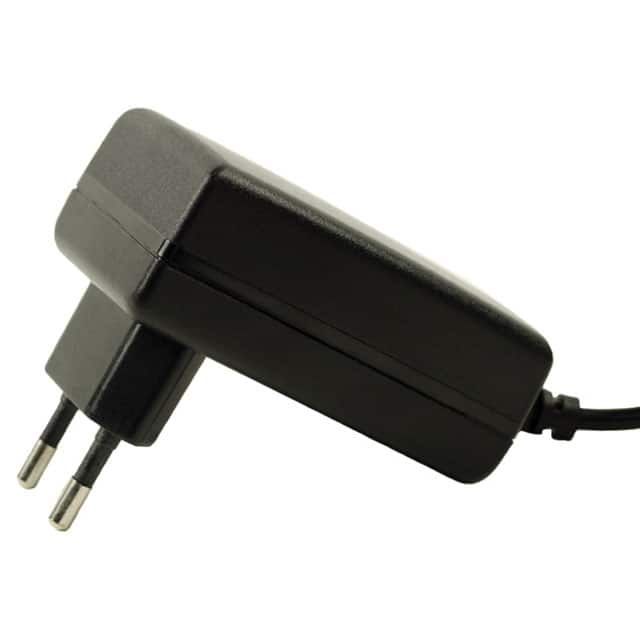

AC/DC WALL MOUNT ADAPTER 36V 30W
All alternatives
View full reportTechnical parameters
Key specs
Input voltage90 ~ 264 V
Output voltage36 V
Output current830 mAMax
Power30 WMax
| Power | |
|---|---|
| Current - Output (Max) | 830mA |
| No Load Power Consumption | 75mW (Max) |
| Power (Watts) | 30 W |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 36V |
| Environment and package | |
| Operating Temperature | 0°C~40°C |
| Package | Box |
| Size / Dimension | 2.99" L x 1.69" W x 1.16" H (75.9mm x 42.9mm x 29.5mm) |
| Other | |
| Applications | Medical |
| Approval Agency | CB Scheme, CSA, EN, FCC, IEC, UL |
| Base Product Number | SWM30 |
| Cord Length | 47.2" (1.20m) |
| Efficiency | Level VI, CoC Tier 2 |
| Form | Wall Mount (Class II) |
| Input Connector | CEE 7/16 |
| Input Type | Fixed Blade |
| Mfr | CUI Inc. |
| Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm |
| Polarization | Positive Center |
| Product Status | Active |
| Region Utilized | Europe |
| Series | SWM30-E (30W) |
| Standard Number | C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3 |
