Amgis, LLCUnited States

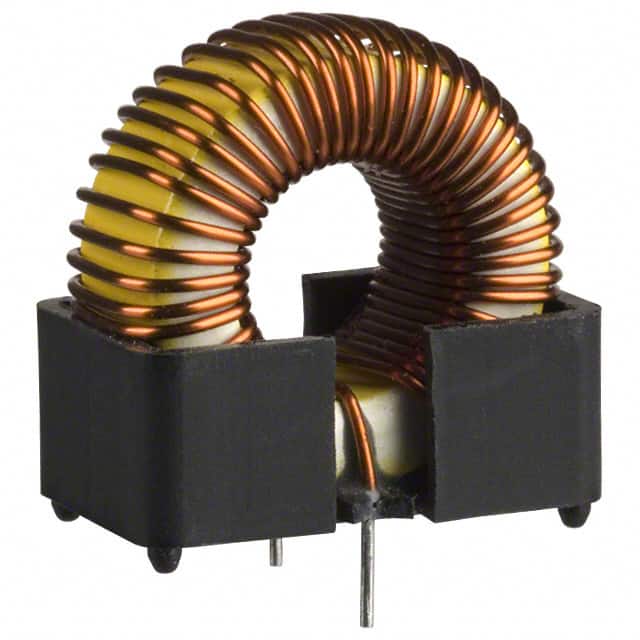

FIXED IND 150UH 2A 100 MOHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance150 µH
Rated current2 AMax
DC resistance100 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 2 A |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 10 kHz |
| Environment and package | |
| Height - Seated (Max) | 1.059" (26.90mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C |
| Package | Bulk |
| Package / Case | Radial, Vertical (Open) |
| Size / Dimension | 0.949" L x 0.598" W (24.10mm x 15.20mm) |
| Supplier Device Package | - |
| Other | |
| DC Resistance (DCR) | 100mOhm Max |
| Inductance | 150 µH |
| Material - Core | Iron Powder |
| Mfr | Amgis, LLC |
| Product Status | Active |
| Q @ Freq | - |
| Ratings | - |
| Series | SW |
| Shielding | Unshielded |
| Tolerance | ±20% |
| Type | Toroidal |
