Alpha WireUnited States

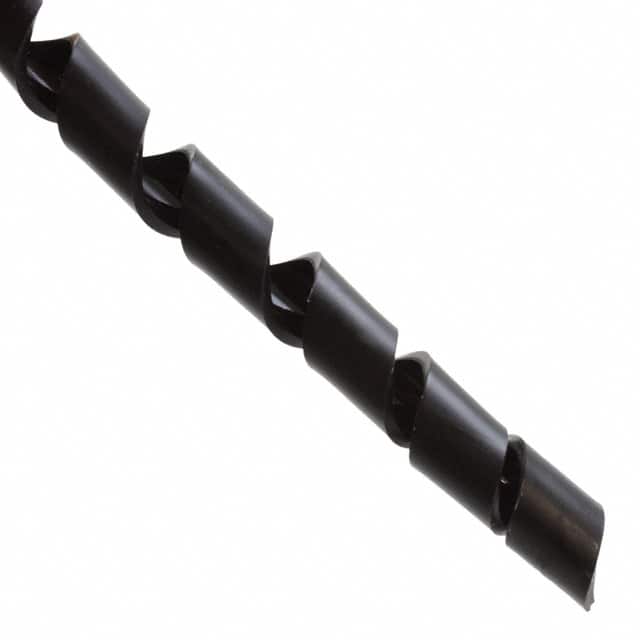

SPIRAL WRAP 0.376" X 100' BLACK
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Operating Temperature | -20°C~80°C |
| Package | Bulk |
| Other | |
| Abrasion Protection | Abrasion Resistant |
| Base Product Number | SW53 |
| Color | Black |
| Diameter - Inside, Expanded | - |
| Diameter - Inside, Non-Expanded | 0.376" (9.55mm) |
| Diameter - Outside, Non-Expanded | 0.500" (12.70mm) |
| Environment Protection | - |
| Features | Self Extinguishing |
| Heat Protection | - |
| Length | 100' (30.48m) |
| Liquid Protection | - |
| Material | Polyvinyl Chloride (PVC) |
| Material Flammability Rating | - |
| Mfr | Alpha Wire |
| Product Status | Active |
| Series | FIT® SW |
| Type | Spiral Wrap |
| Type Attributes | Harness |
| Wall Thickness | 0.062" (1.57mm) |
| Width | - |
Documents
No documents are linked to this part yet.
