Seoul Semiconductor Inc.South Korea

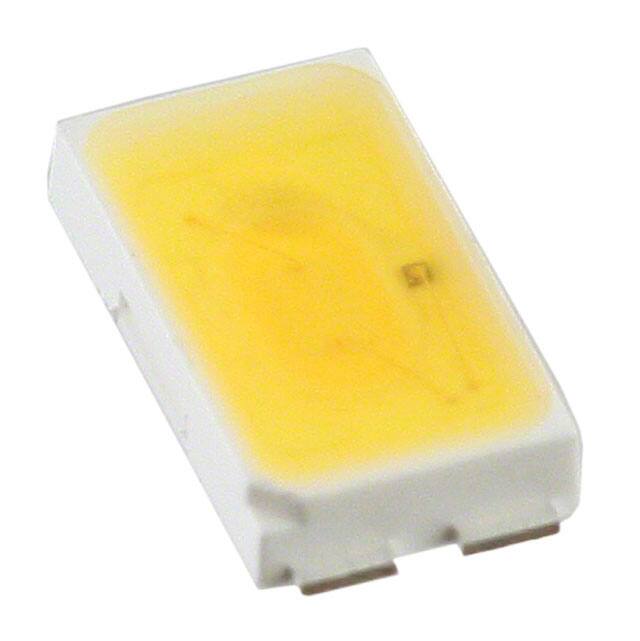

LED ACRICH NEU WHITE 4000K 4SMD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Max | 160mA |
| Current - Test | 100mA |
| Flux @ 25°C, Current - Test | 33lm (Typ) |
| Flux @ 85°C, Current - Test | - |
| Lumens/Watt @ Current - Test | 103 lm/W |
| Voltage - Forward (Vf) (Typ) | 3.2V |
| Environment and package | |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Mounting Type | Surface Mount |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 4-SMD, Flat Lead Exposed Pad |
| Size / Dimension | 0.205" L x 0.118" W (5.20mm x 3.00mm) |
| Supplier Device Package | - |
| Thermal Resistance of Package | 18°C/W |
| Other | |
| Base Product Number | STW8Q14 |
| CCT (K) | 4000K (3700K ~ 4200K) |
| Color | White, Neutral |
| CRI (Color Rendering Index) | 80 |
| Mfr | Seoul Semiconductor Inc. |
| Product Status | Active |
| Series | Acrich |
| Viewing Angle | 120° |
Documents
No documents are linked to this part yet.
