STMicroelectronicsSwitzerland

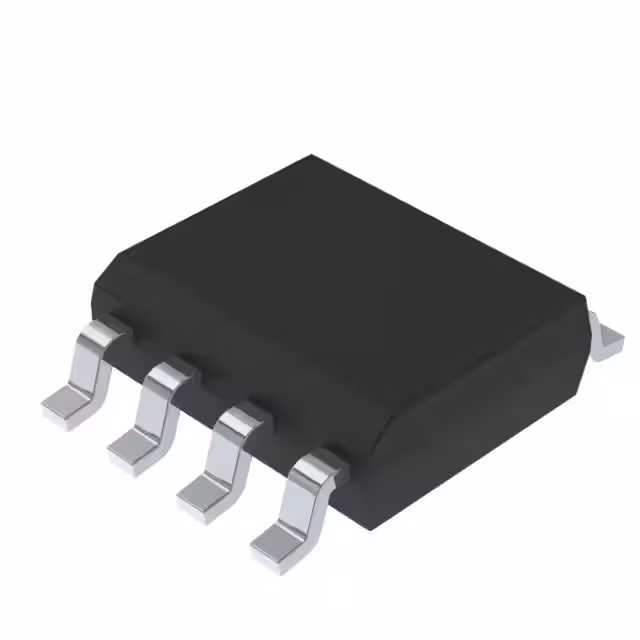

MOSFET 2N-CH 450V 0.4A 8SOIC
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 400mA |
| Drain to Source Voltage (Vdss) | 450V |
| Power - Max | 1.6W |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature | 150°C(TJ) |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Other | |
| Base Product Number | STS1DNC45 |
| FET Feature | Standard |
| FET Type | 2 N-Channel (Dual) |
| Gate Charge (Qg) (Max) @ Vgs | 10nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 160pF @ 25V |
| Mfr | STMicroelectronics |
| Product Status | Active |
| Rds On (Max) @ Id, Vgs | 4.5Ohm @ 500mA, 10V |
| Series | SuperMESH™ |
| Vgs(th) (Max) @ Id | 3.7V @ 250µA |
